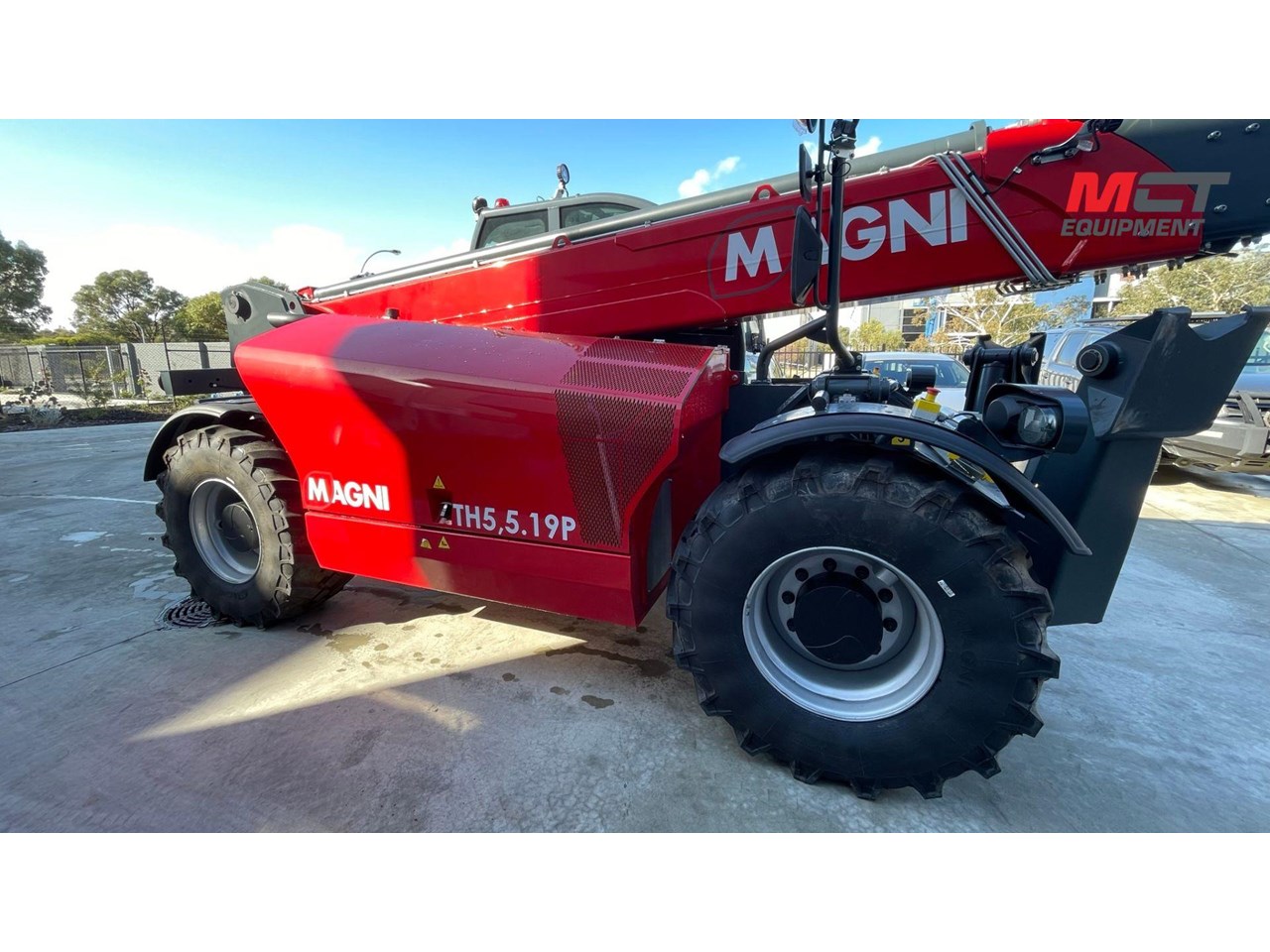

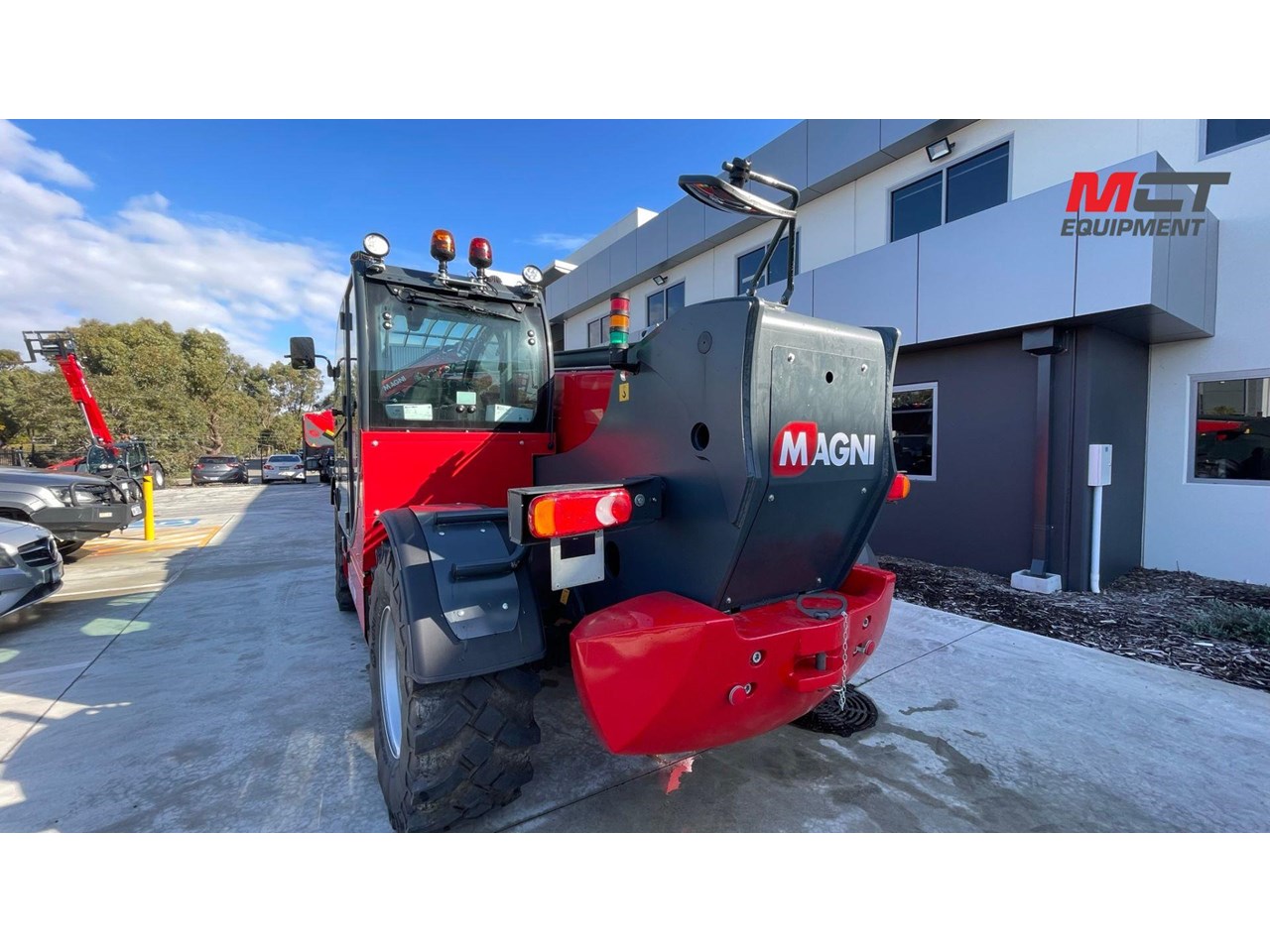

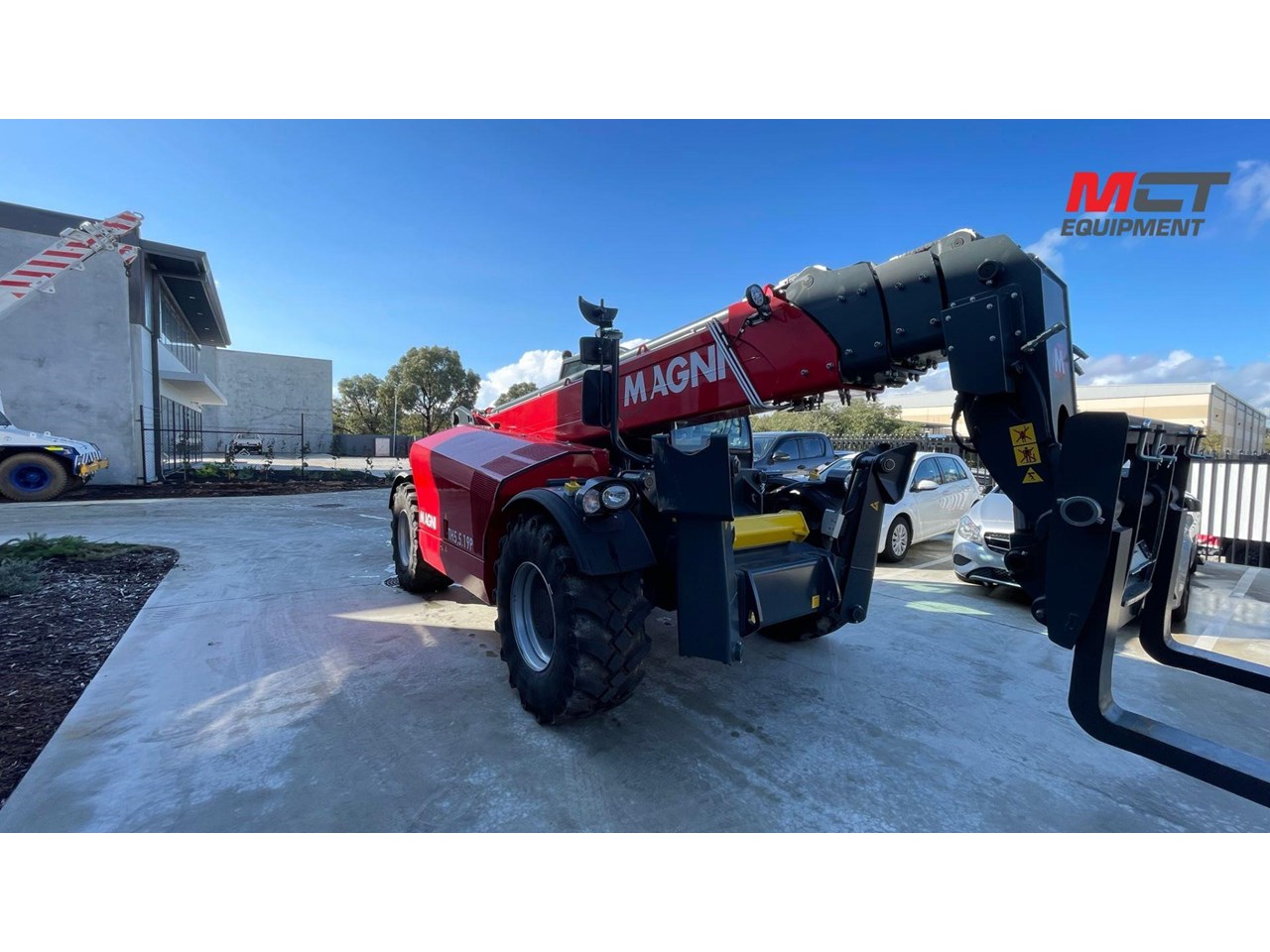

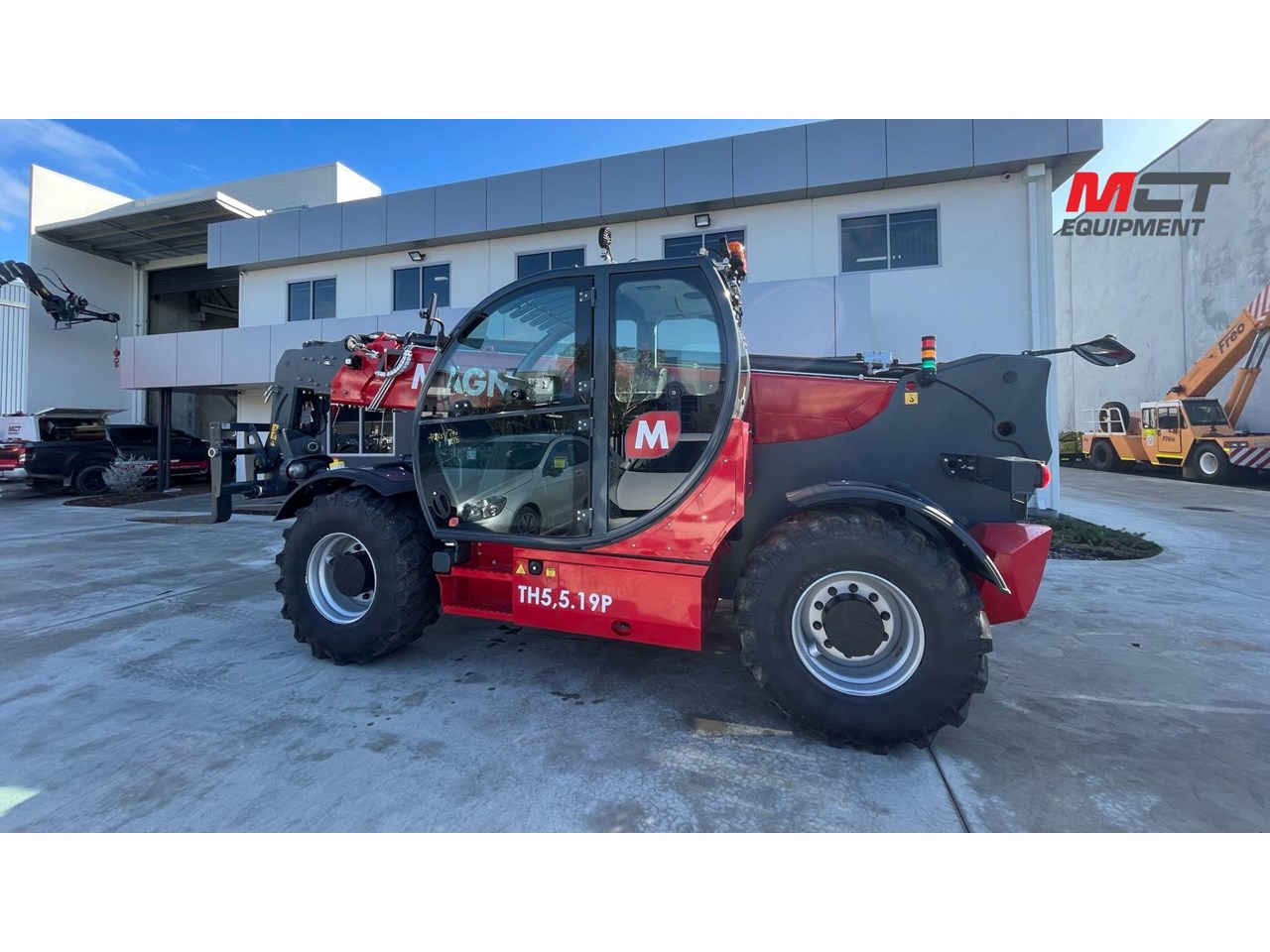

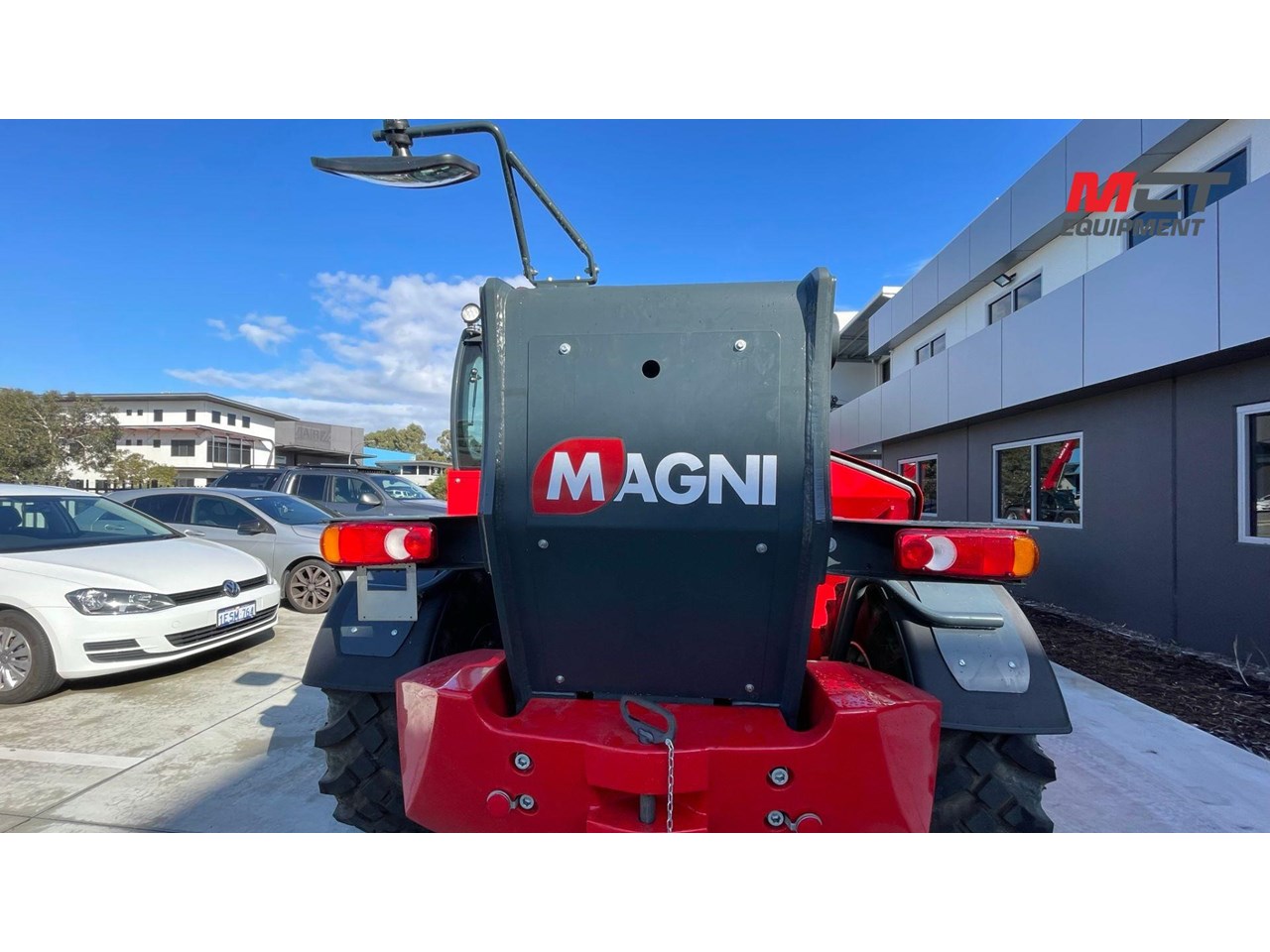

2024 MAGNI TH 5,5.19P

The TH 5,5.19P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 74,4 kW engine, it can safely reach a height of 18.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability.

This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Some features:
o Lowered design for great stability

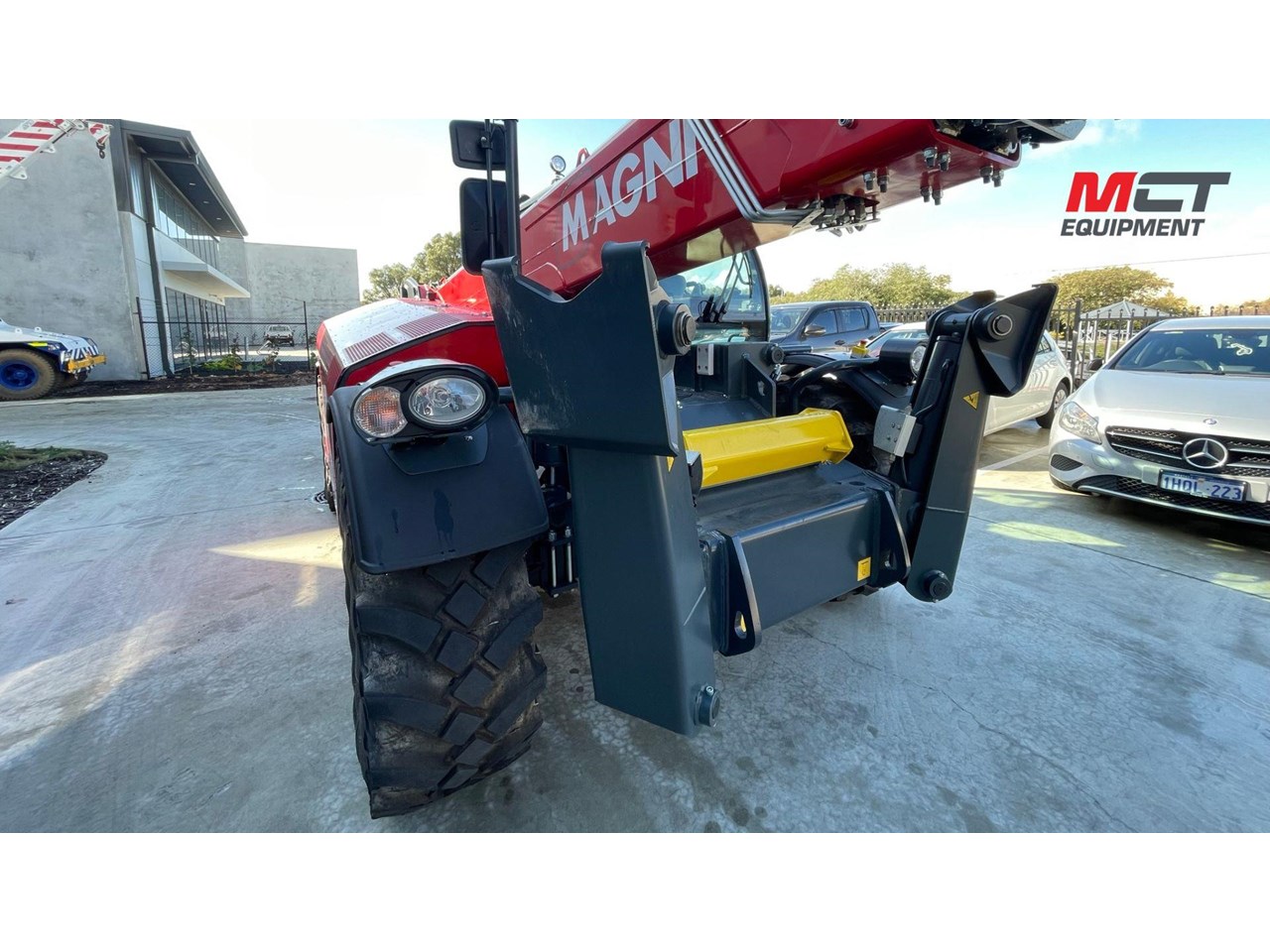

o Standard pivoting stabilisers for optimised lifting capacities up to 5.5 tonnes
o 350 bar L/S hydraulic system
o 4WD

Specifications:
o Stabilisers: Pivoting
o Lifting capacity: 5,500 kg
o Capacity at maximum height: 3,000 kg
o Lifting height: 18.80 m
o Reach: 14.20 m

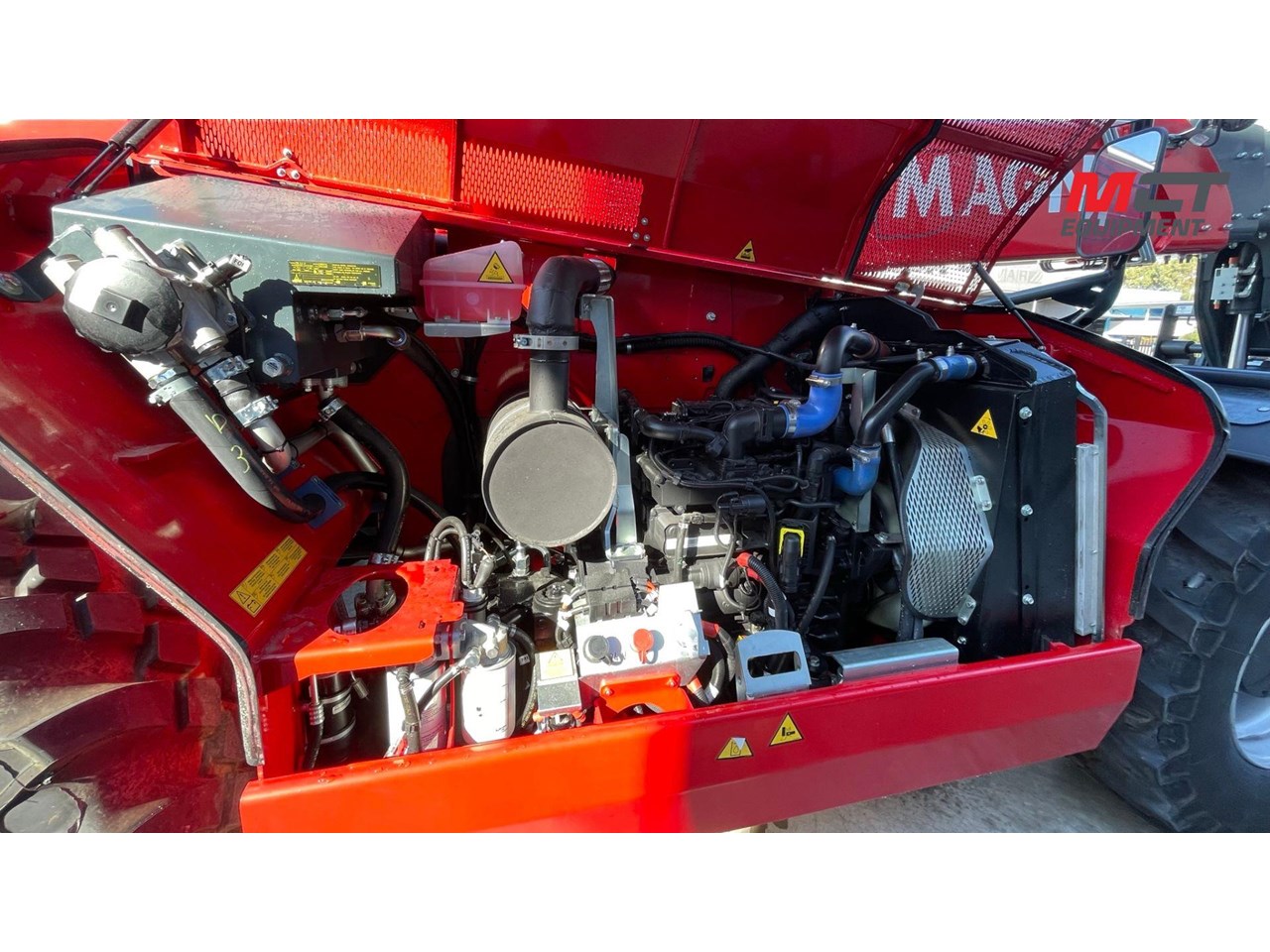

o Engine: Deutz TCD 3,6 L4 EDG - Stage IIIA
o Rated power: 74,40 kW (101,20 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.35 m
o Width: 2.48 m
o Ground clearance: 400 mm
o Unladen weight: 13,500 kg
o Travel speed: 35 km/h
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
