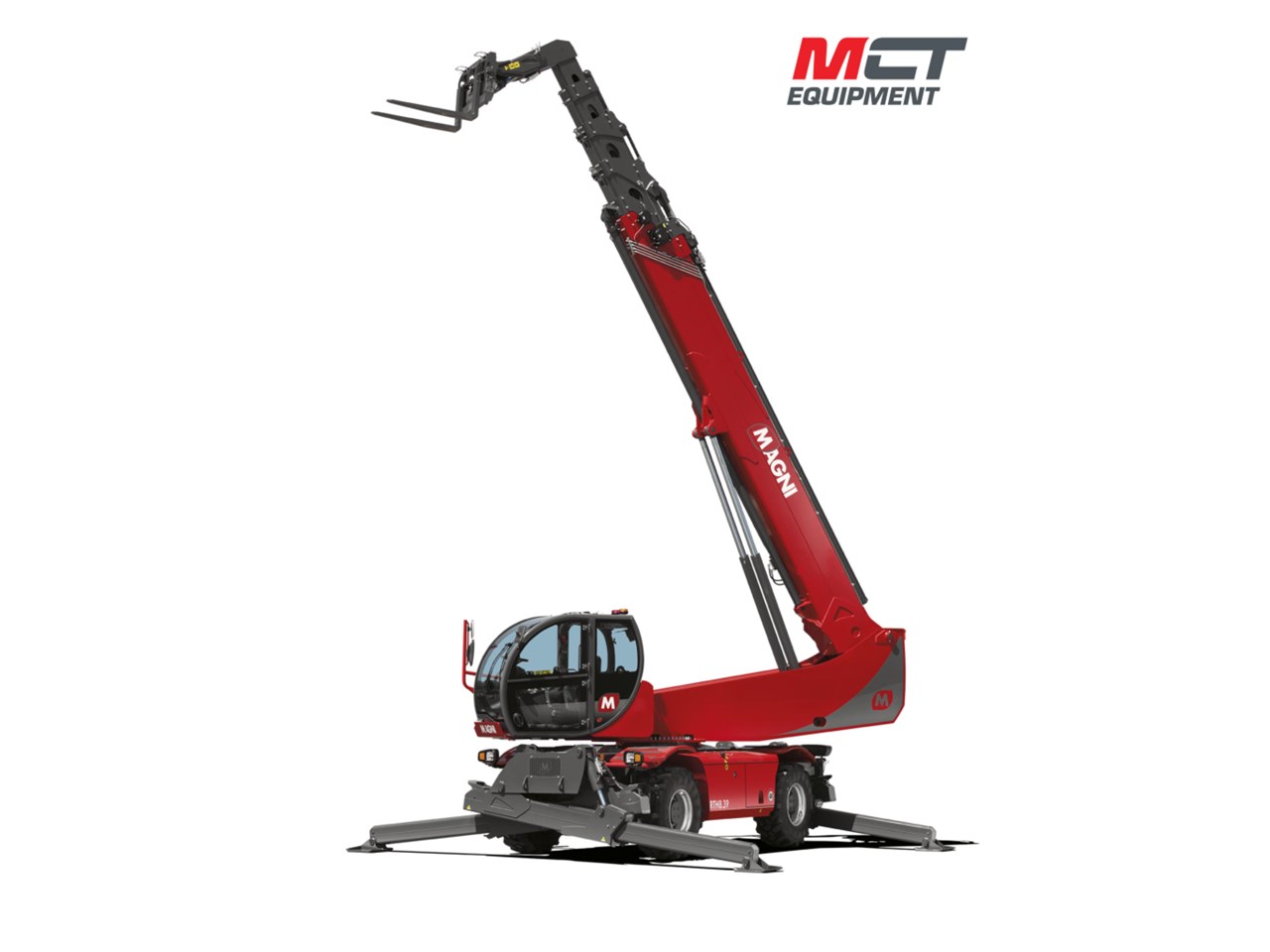

2025 MAGNI RTH 8.39

The inception of the 8.39 ensued from the redesign of the 6.39 model, showcasing upgraded load charts and a noteworthy boost in lifting capacity, elevated by 2 tonnes.

For the first time, this machine is equipped with two extension modes, M1 and M2. These two modes give access to two different load charts, to maximise performance in all operating conditions. The standard extension mode, M1, offers the operator the maximum reach and higher load capacities at the maximum height, while M2 mode restricts reach to provide increased load capacity of up to 8 tonnes.

Reliable and rugged, it is the ideal partner on even the toughest construction sites, while their agility and ease of use guarantee operators a unique experience. No challenge is too complex: safety and precision are assured at even the greatest heights.

Specifications:
o Stabilizers: scissors
o Lifting capacity: 8,000 kg
o Capacity at maximum height: 2,300 kg
o Lifting height: 38.80 m
o Reach: 27 m
o Engine: Volvo TAD 583 VE Stage V
o Rated power: 175 kW (238 hp) 2.300 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 8.60 m
o Width: 2.54 m
o Ground clearance: 310 mm
o Unladen weight: 24,000 kg
o Travel speed: 40 km/h
o Rotation: 360° (continuous)
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversible fan drive: Yes
