2025 MAGNI RTH 8.27

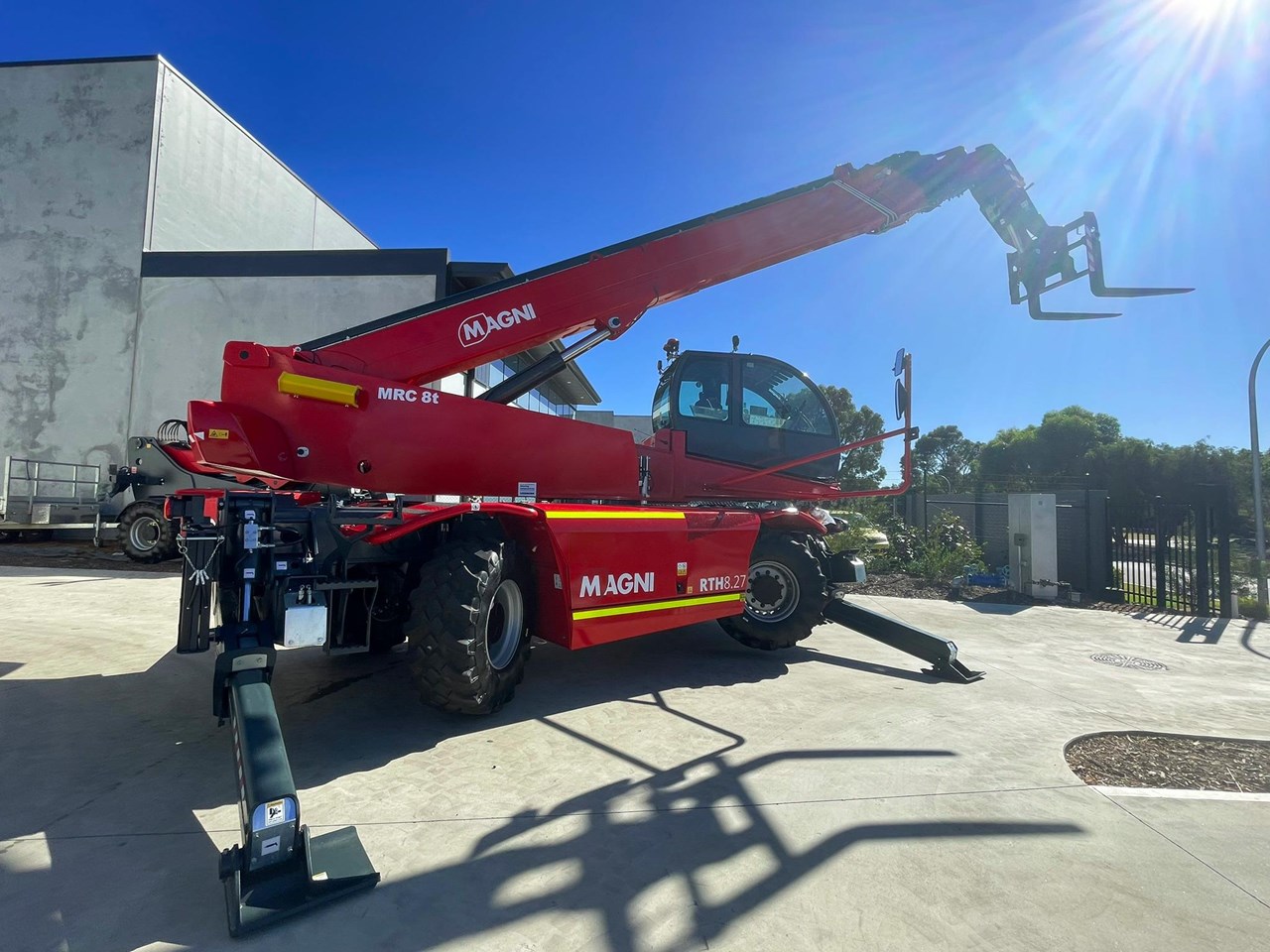

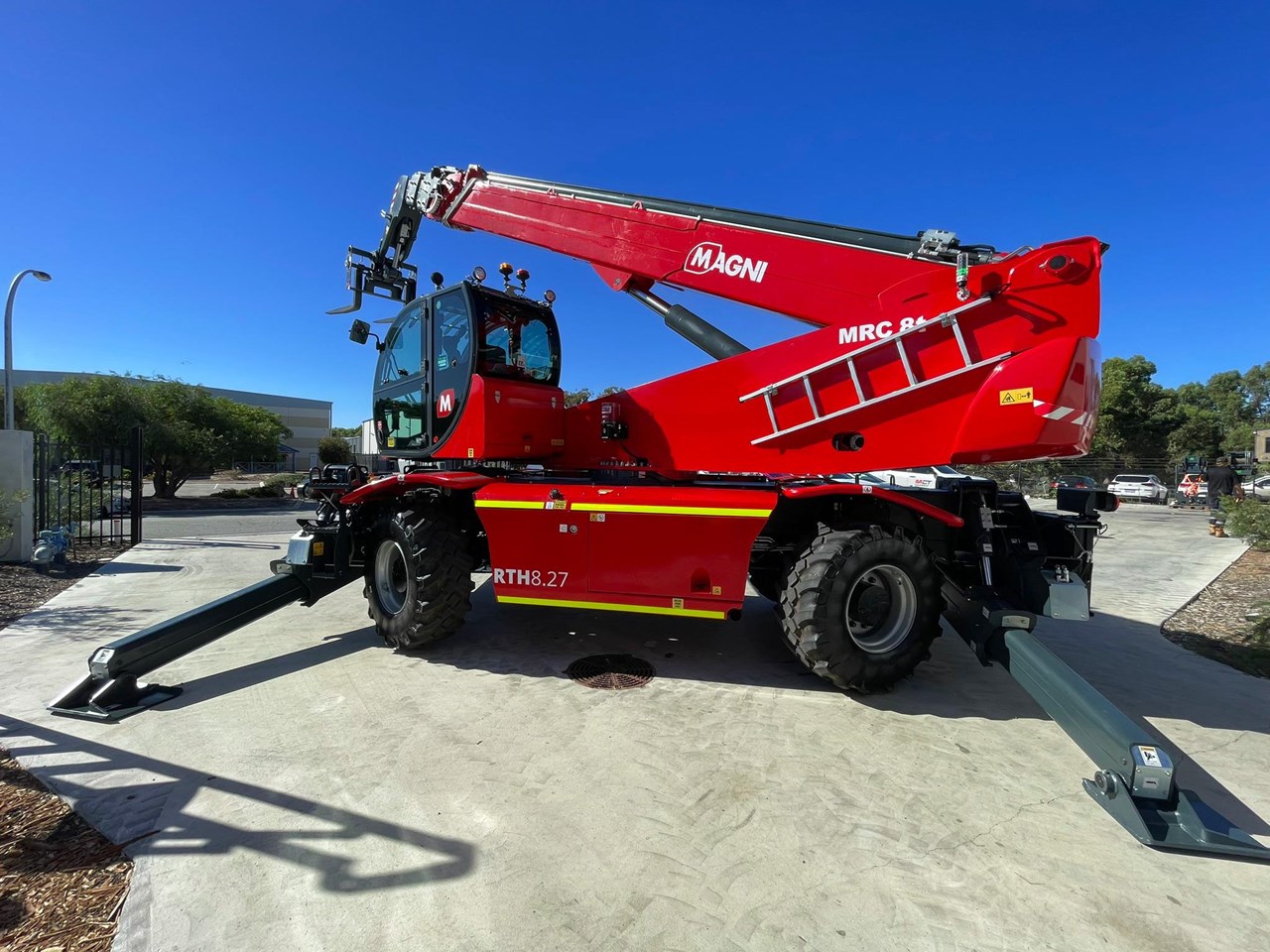

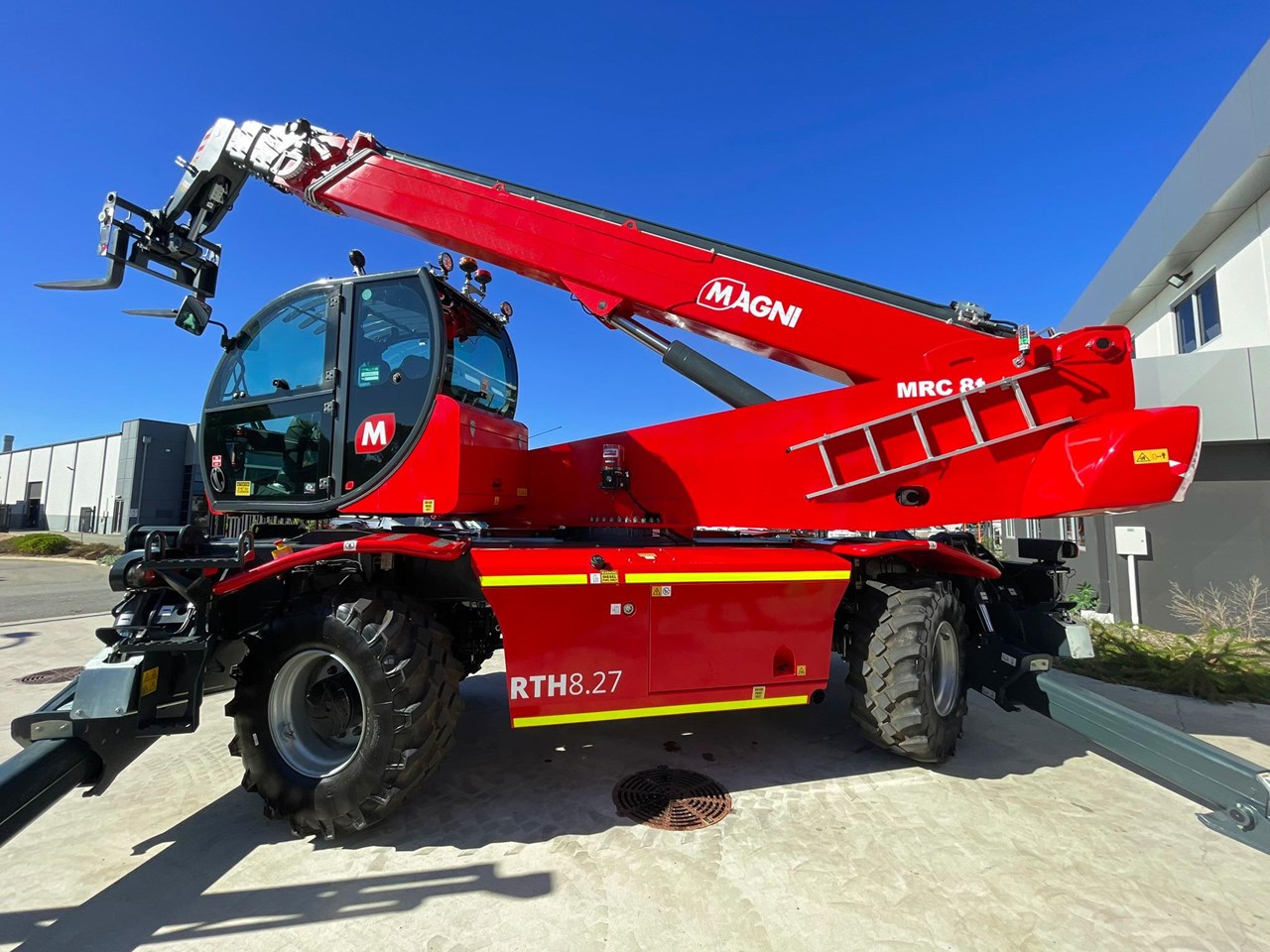

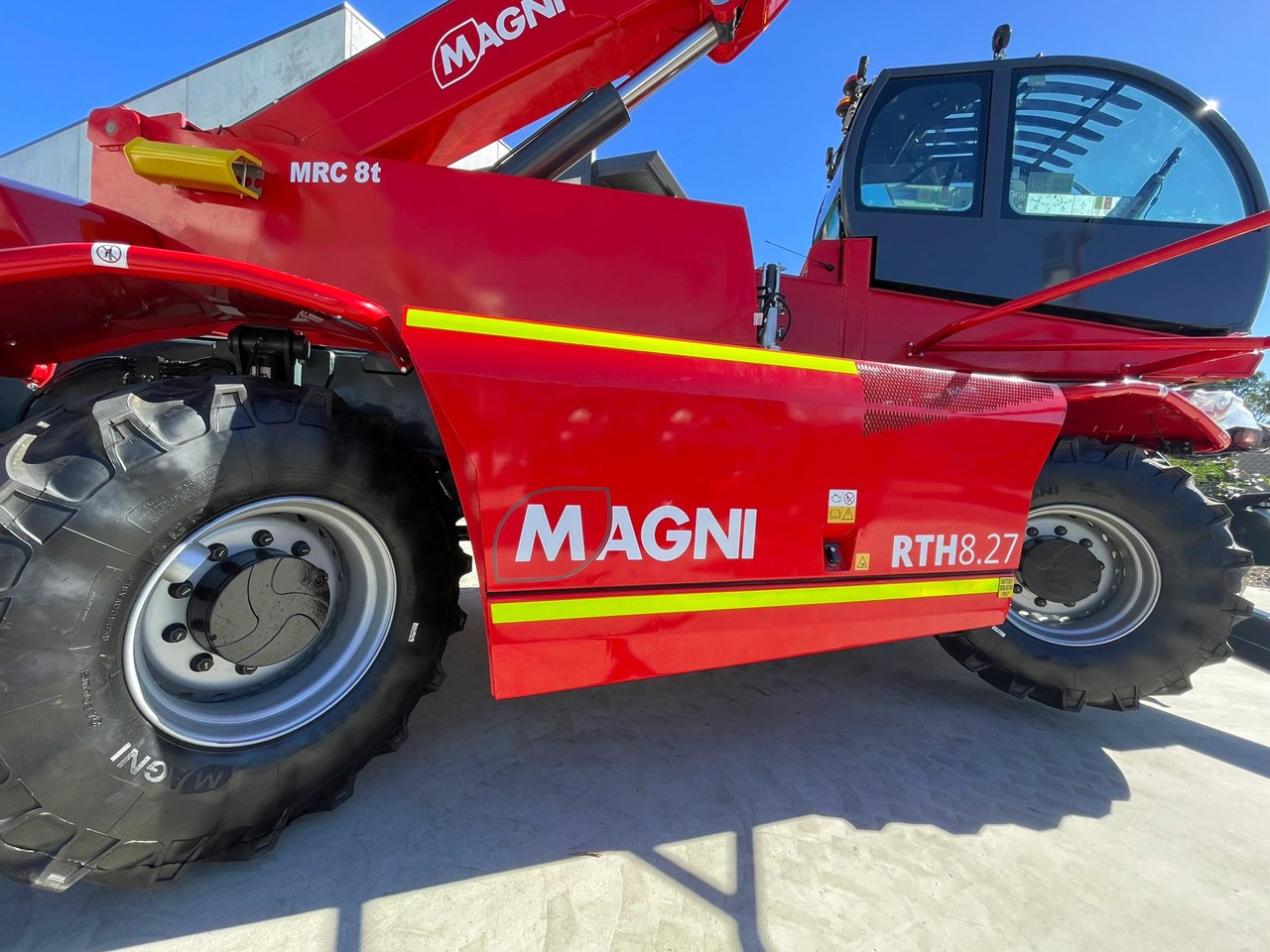

The RTH 8.27 is a simple yet high-performance rotating telescopic handler / telehandler.

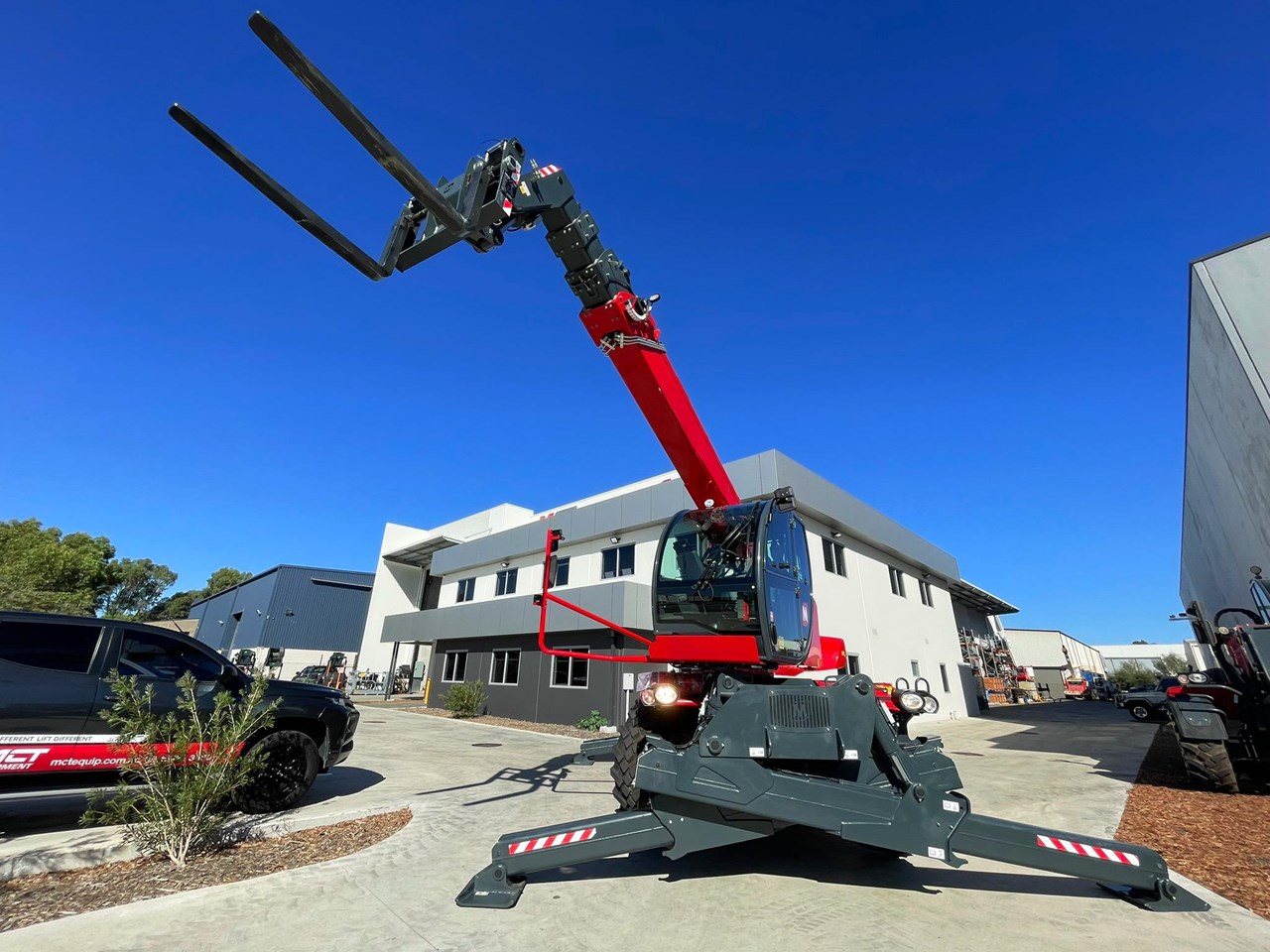

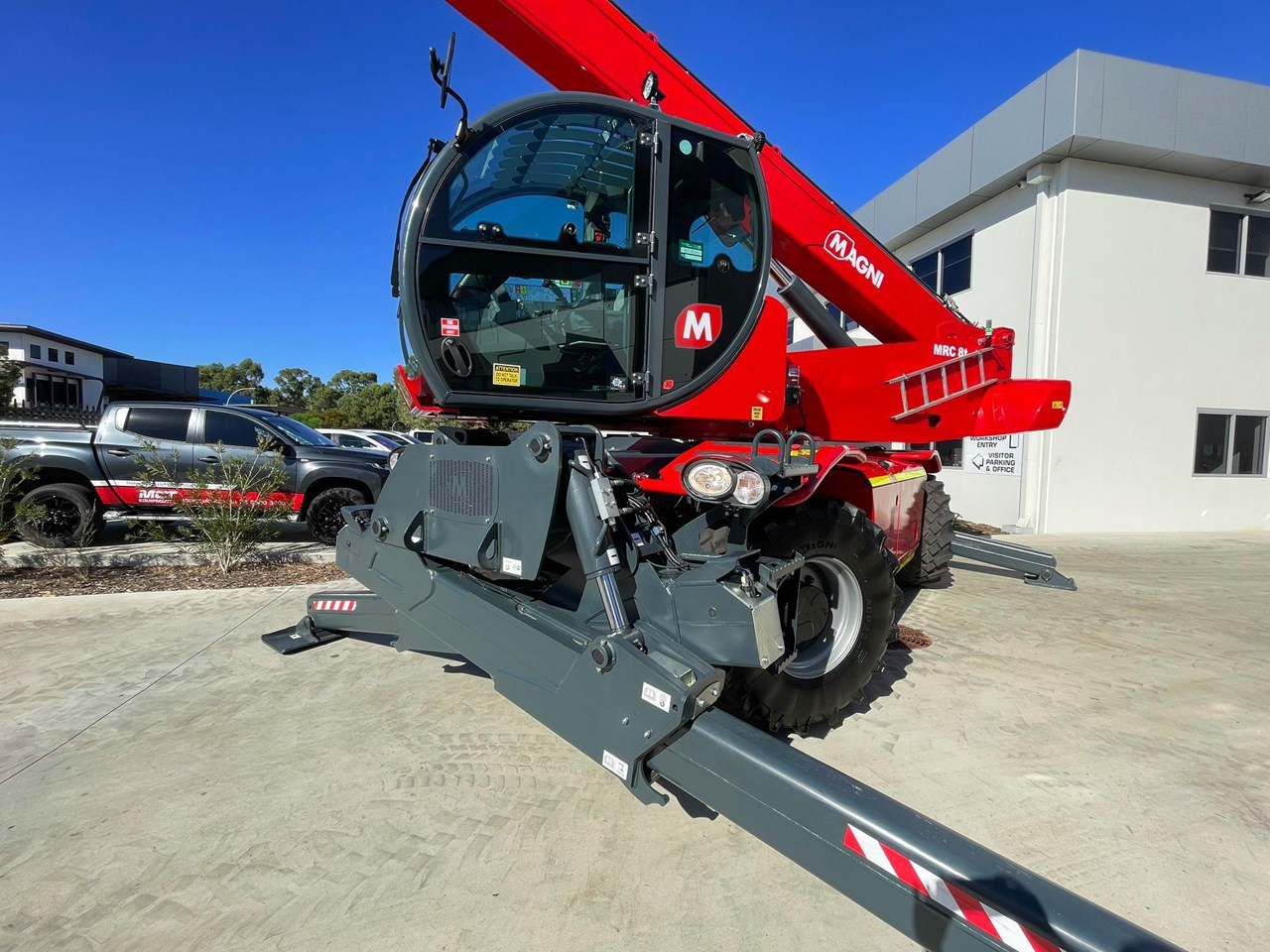

It can lift loads to a height of 27m and is equipped with scissor Stabilisers to ensure greater safety and stability during working manoeuvres. The scissor stabilisers are ideal even with limited space available; even when it is only partially stabilised, the machine is programmed to provide the best possible load chart on each side.

When the stabilisers are fully extended, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilisation base. It is compatible with a huge range of attachments, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts making the Magni RTH a true Swiss Army knife of rotational telescopic handlers; this telescopic handler is able to meet a wide range of applications in construction and industry.

o Dynamic LMI System (compliance to all crane regulations)
o Pressurised cabin
o ROPS II & FOPS

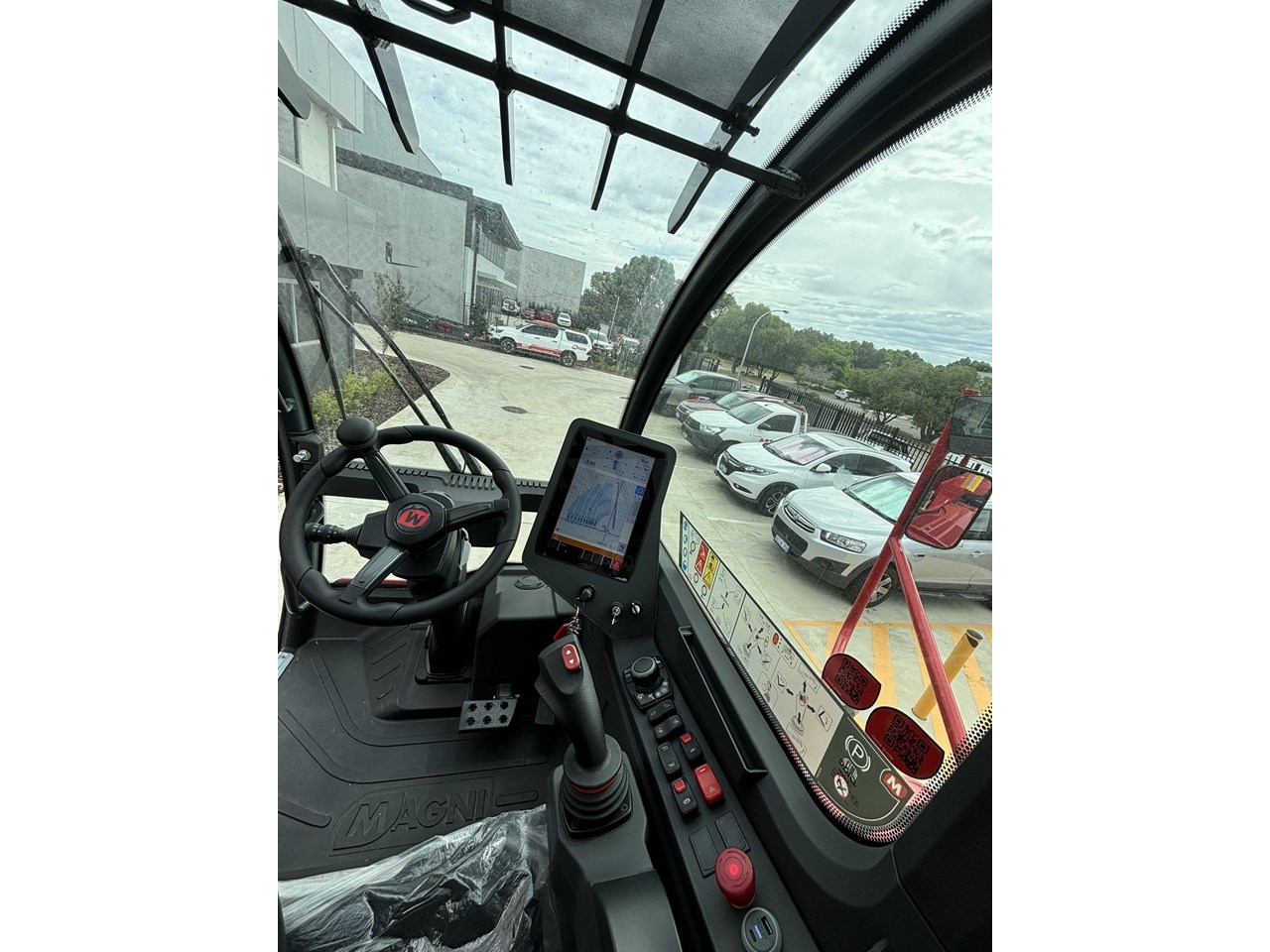

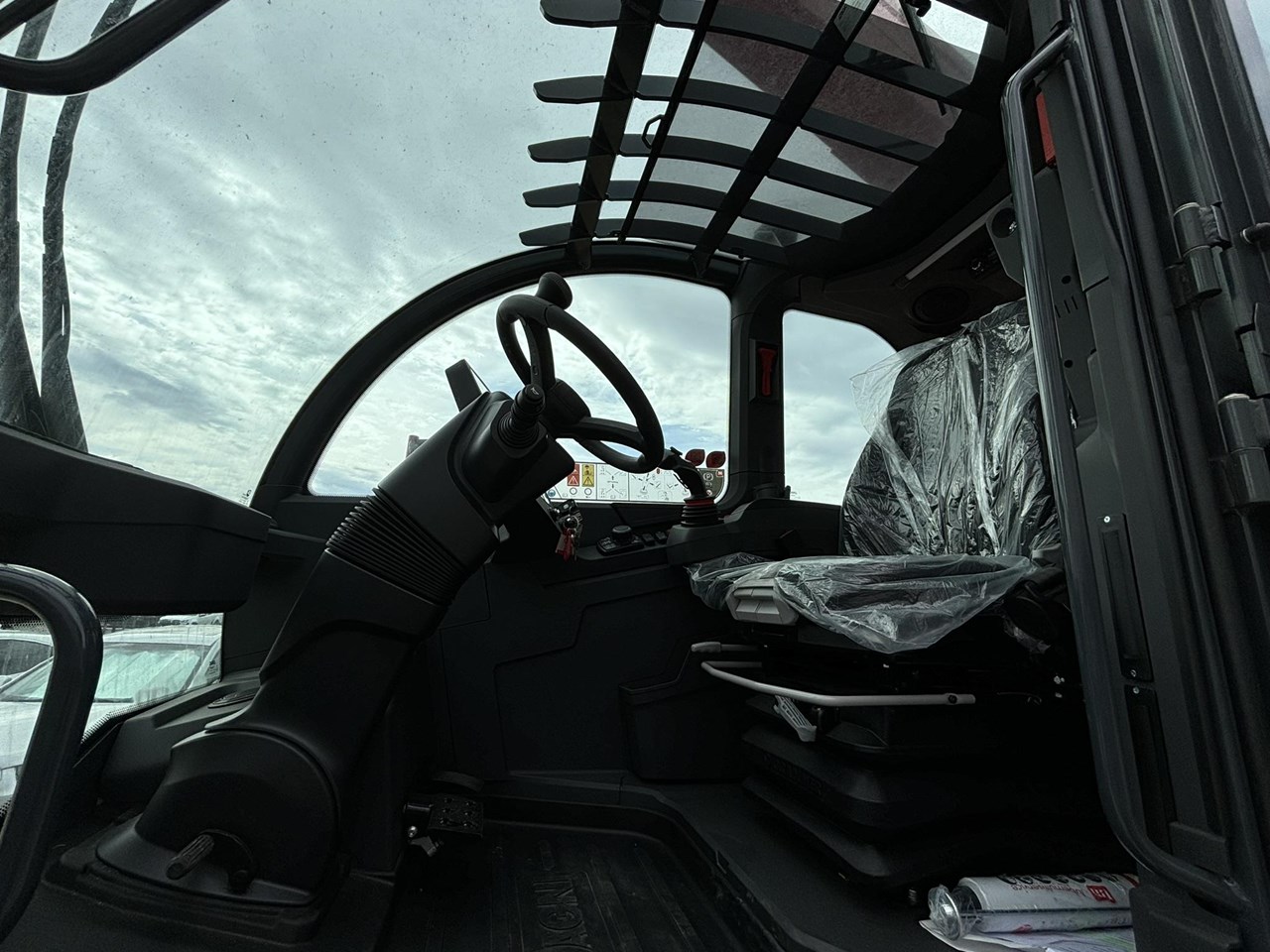

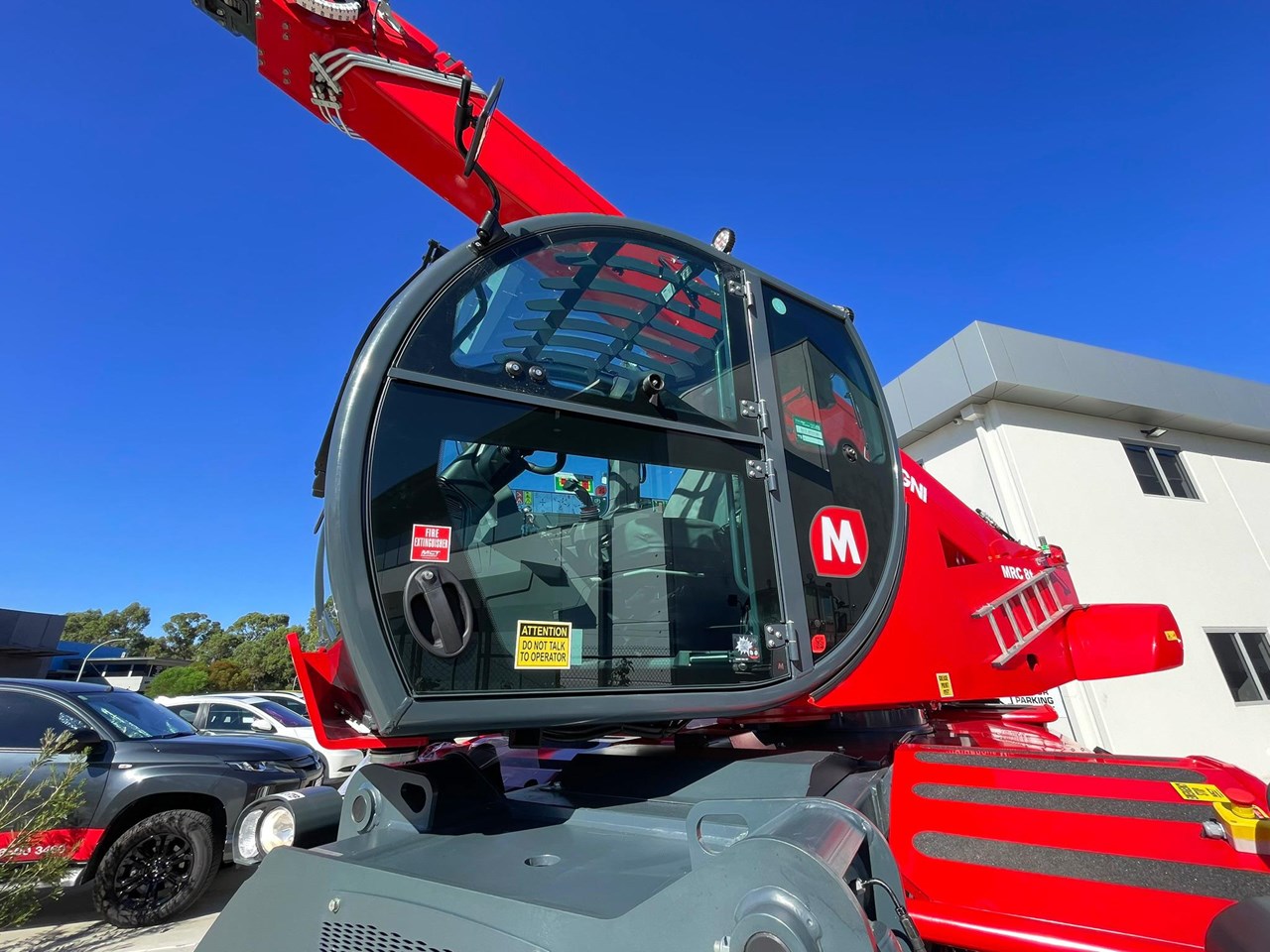

o Full visibility cabin
o Levelling on all tyres
o Telemetrics as standard
o Independent outriggers
o Smoothest rotational machine on the market Liebherr slew
o Customisable functions

Specifications:
o Stabilisers: Scissors
o Lifting capacity: 8,000 kg
o Capacity at maximum height: 4,000 kg
o Lifting height: 26.6 m
o Reach: 23.10 m

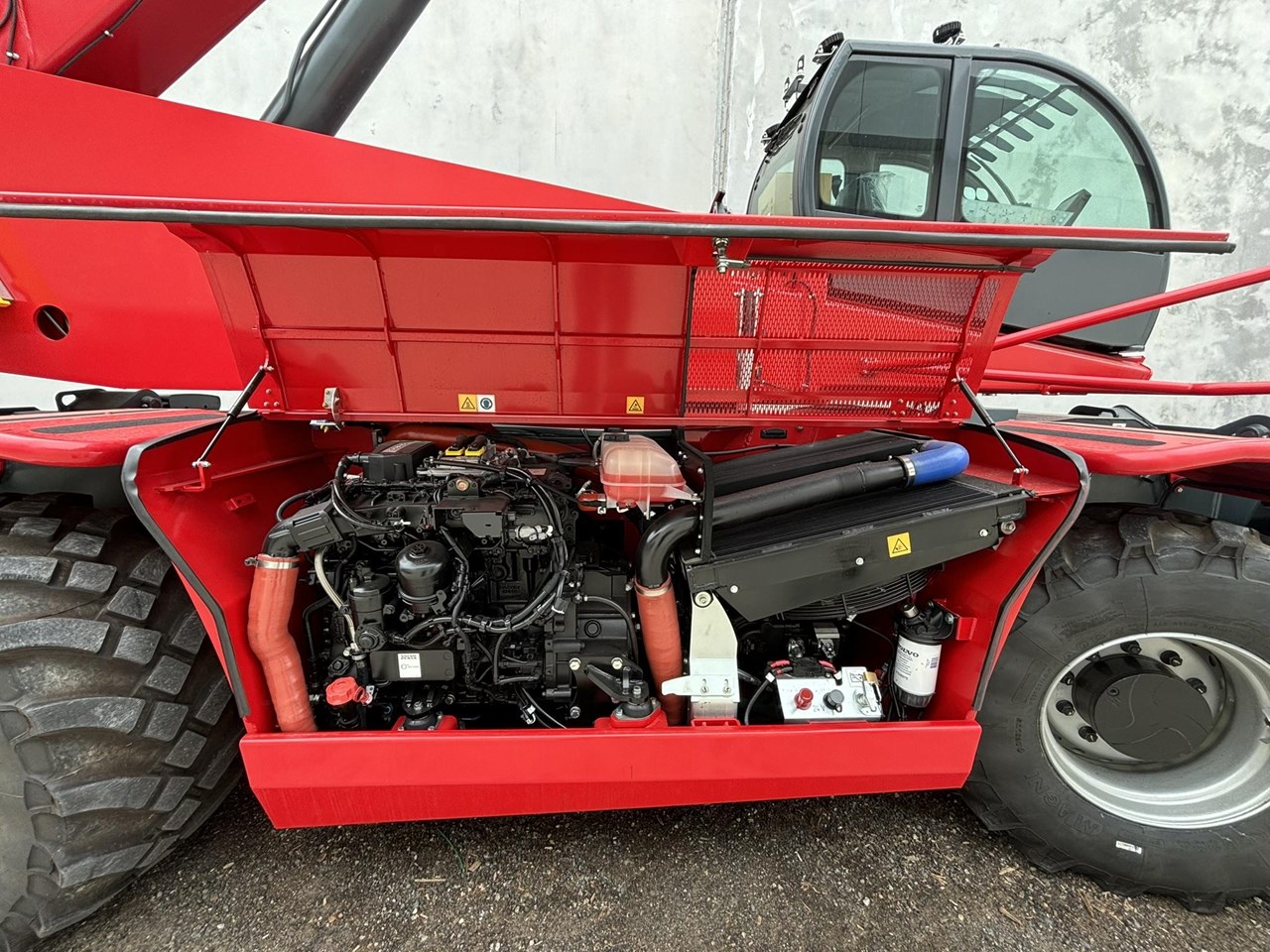

o Engine: Volvo TAD 582 VE Stage V
o Rated power: 160 kW (218 hp) 2.300 rpm
o Hydraulic flow: 160 l/min
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 8.25 m
o Width: 2.53 m
o Ground clearance: 310 mm
o Unladen weight: 22,500 kg
o Travel speed: 40 km/h
o Rotation: 360° (continue)
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
o Reversable fan drive: Yes
