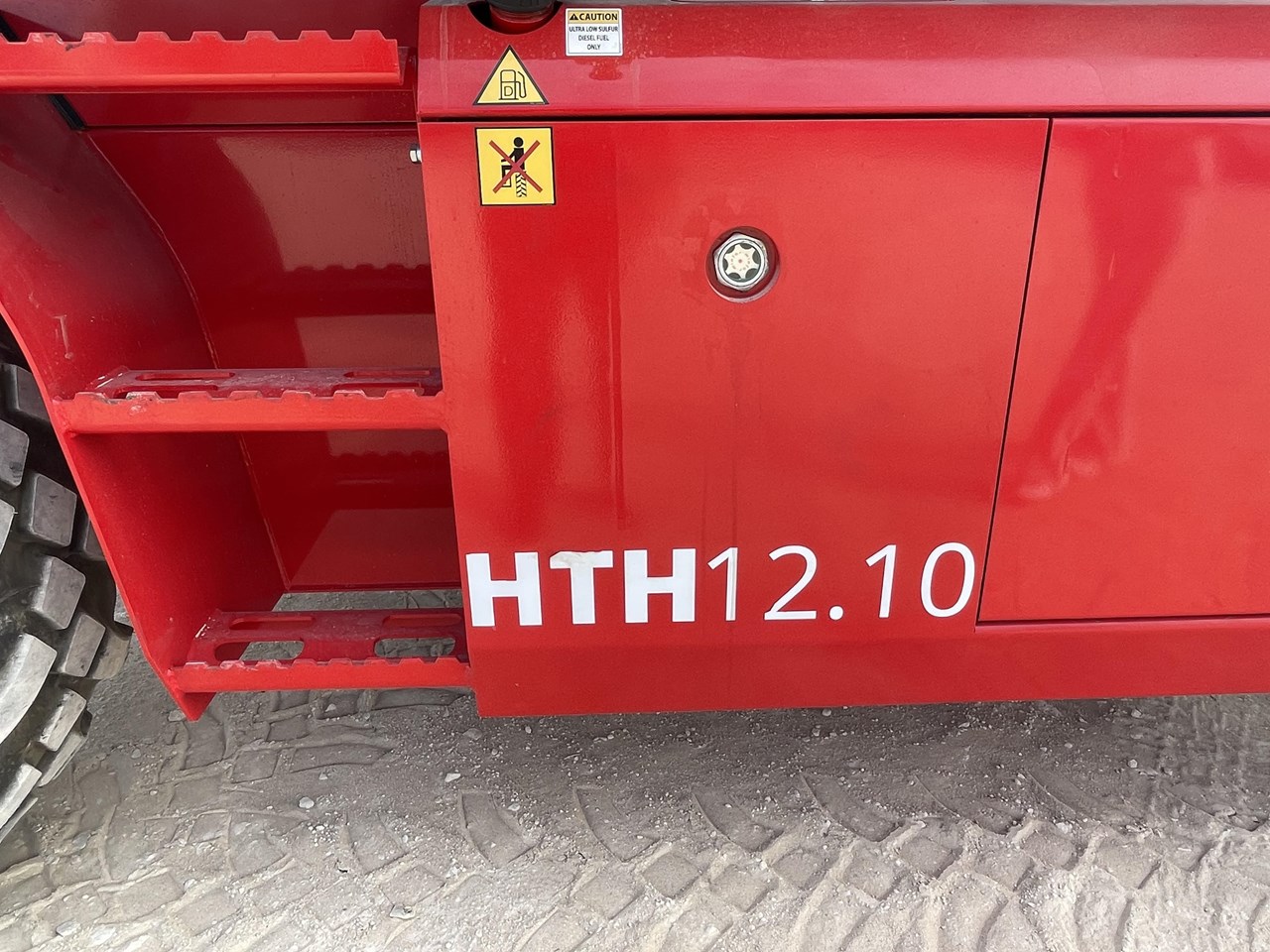

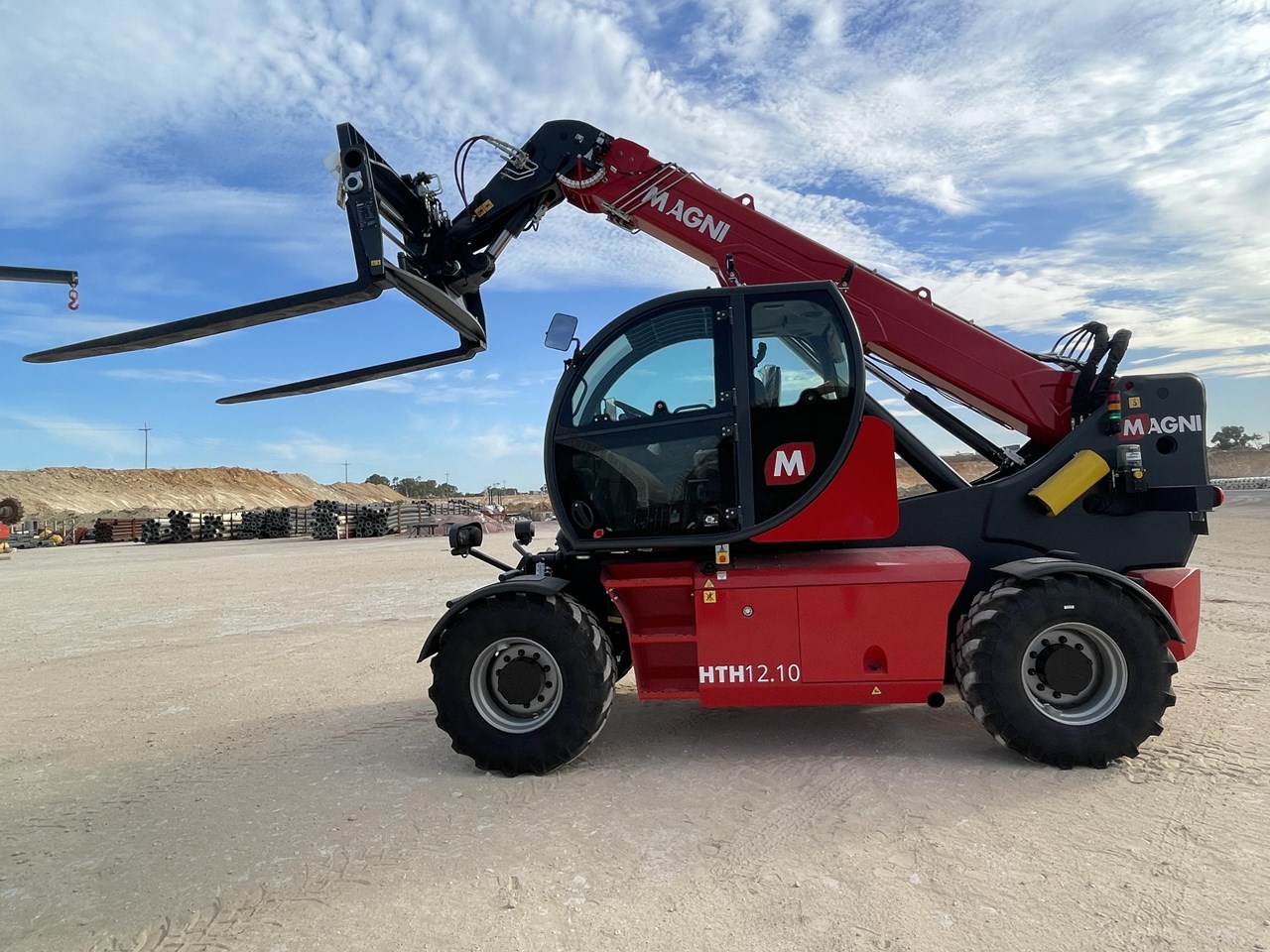

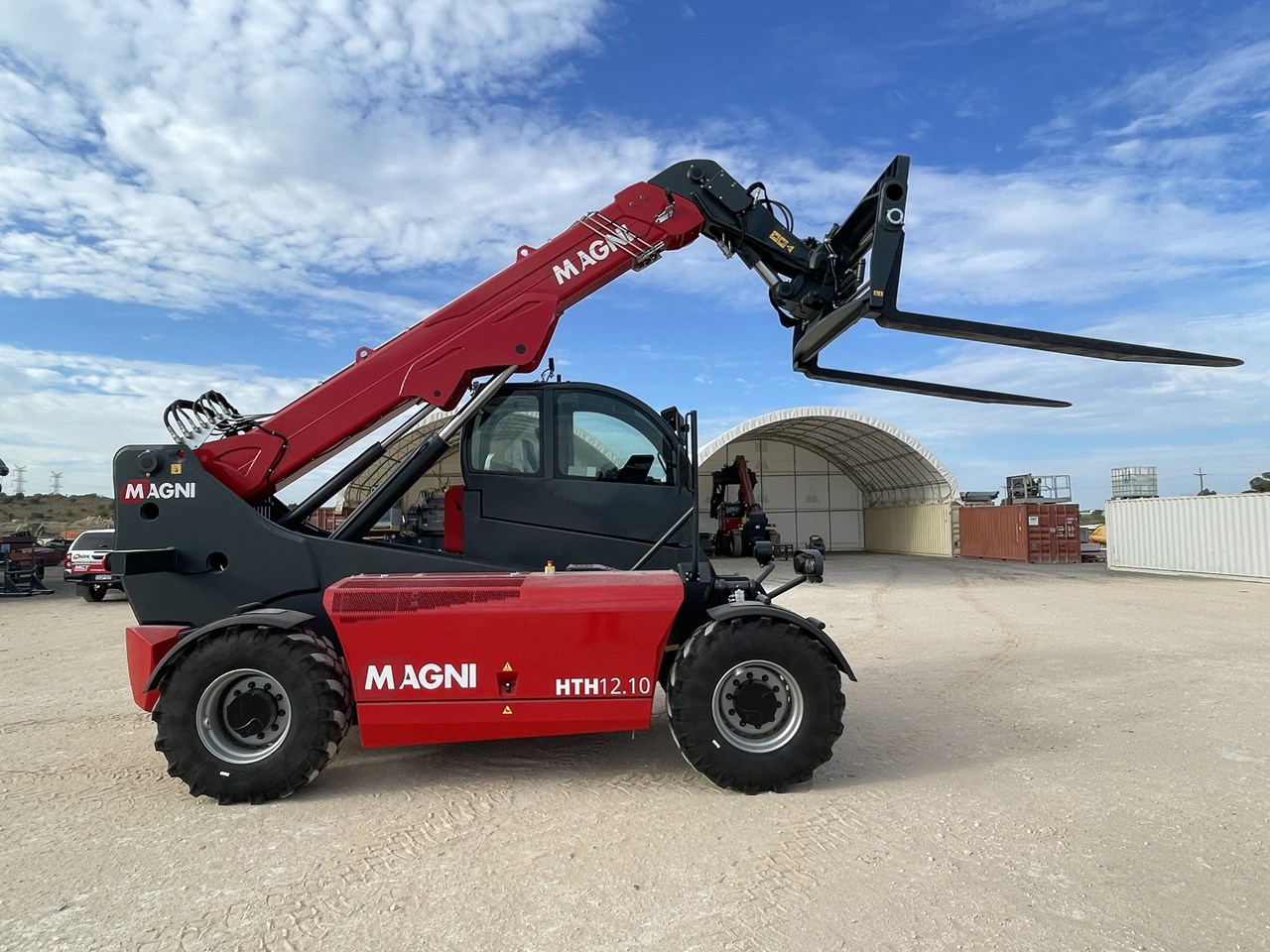

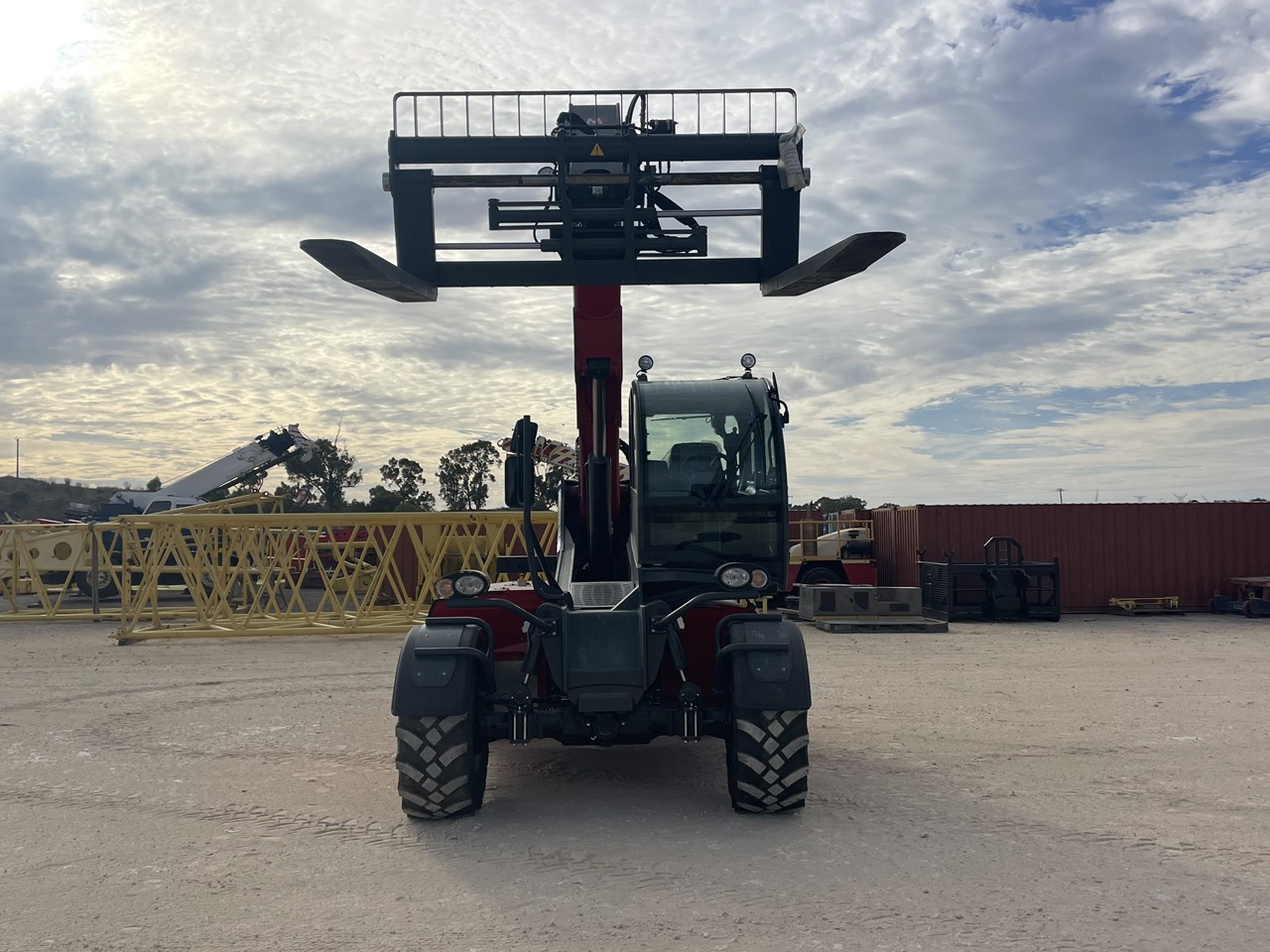

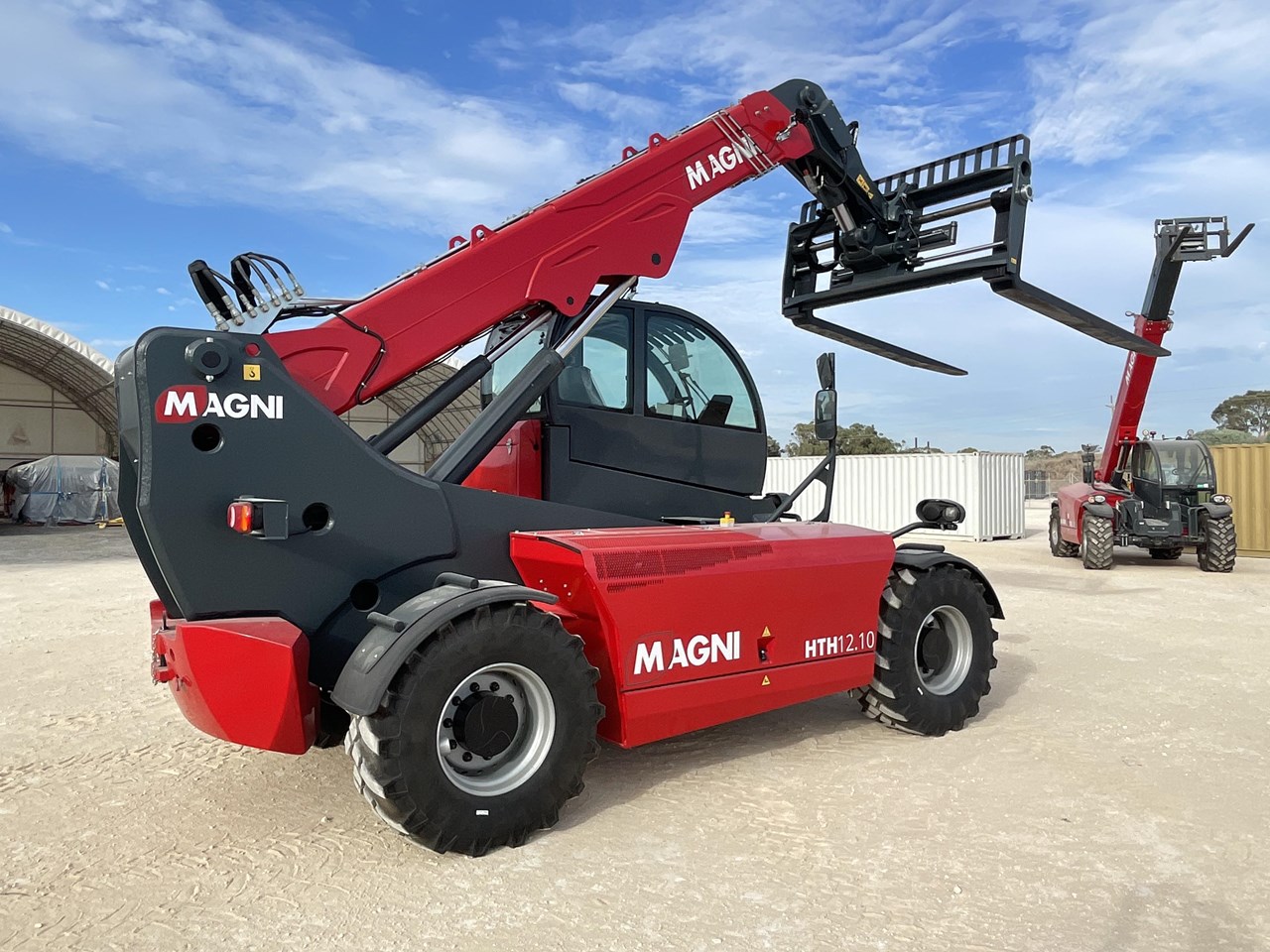

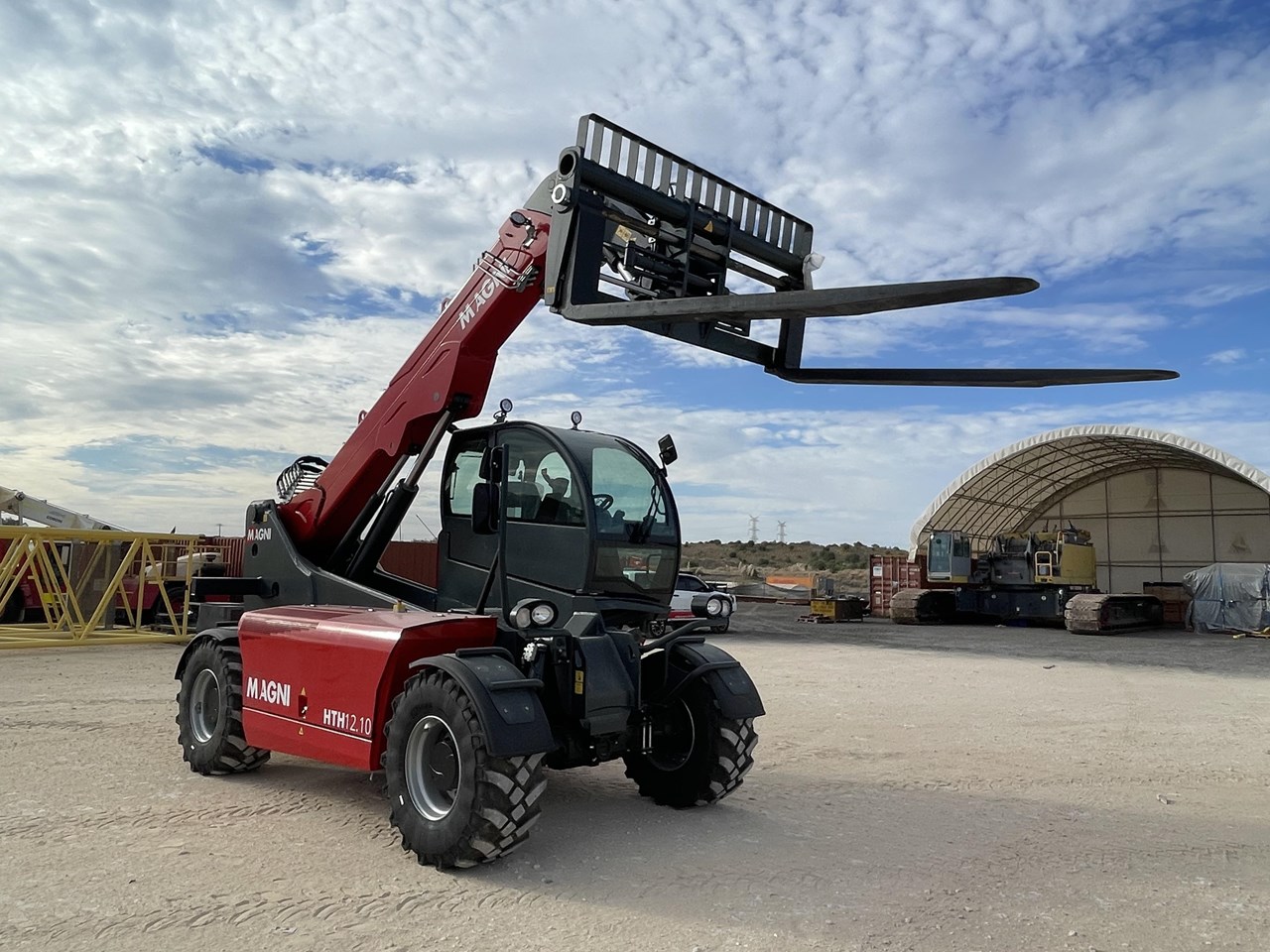

2025 MAGNI HTH 12.10

The HTH 12.10 telescopic handler is ideal for moving large, bulky loads in complete safety.

Able to lift up to 12 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The standard machine configuration includes:

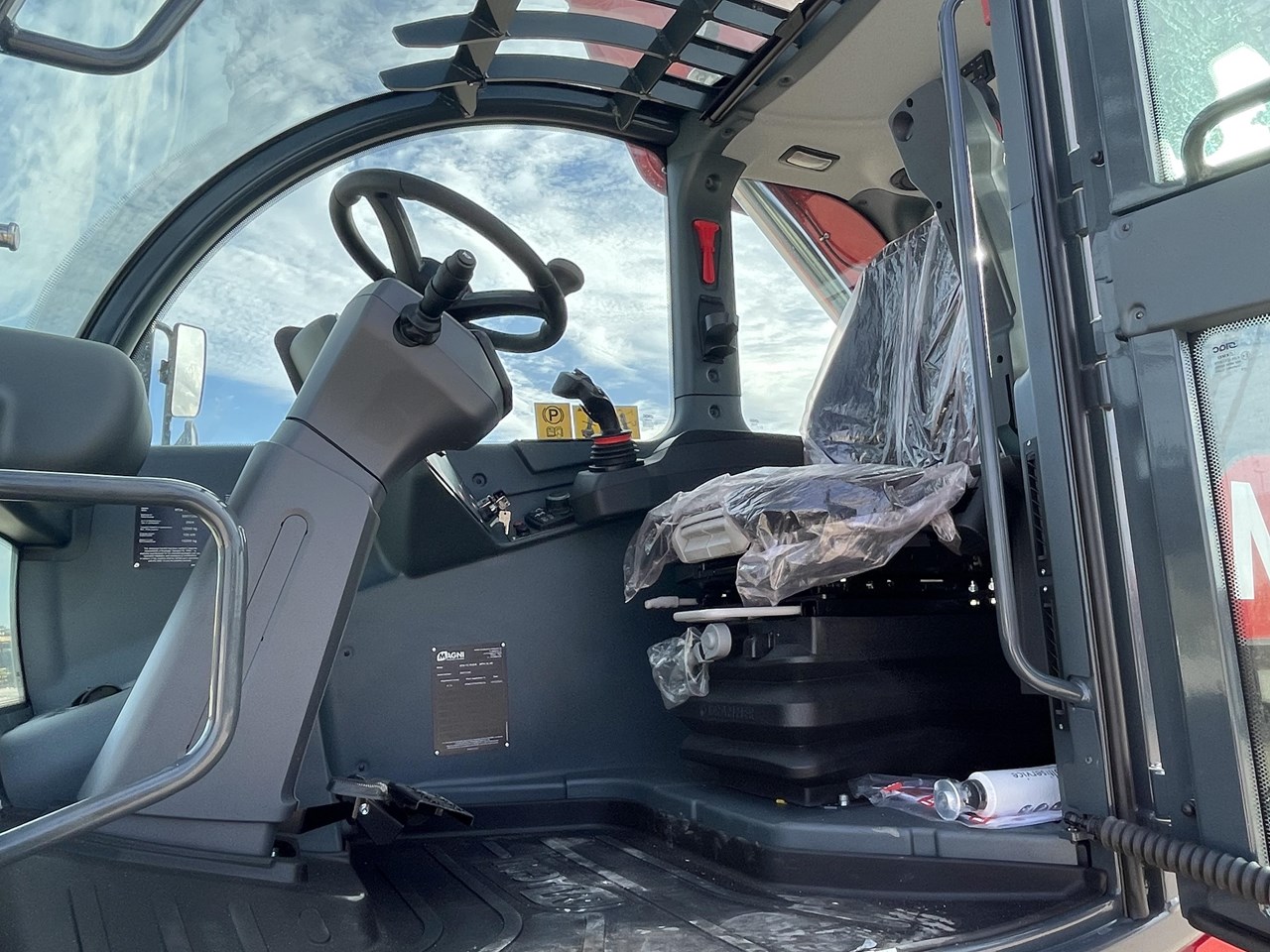

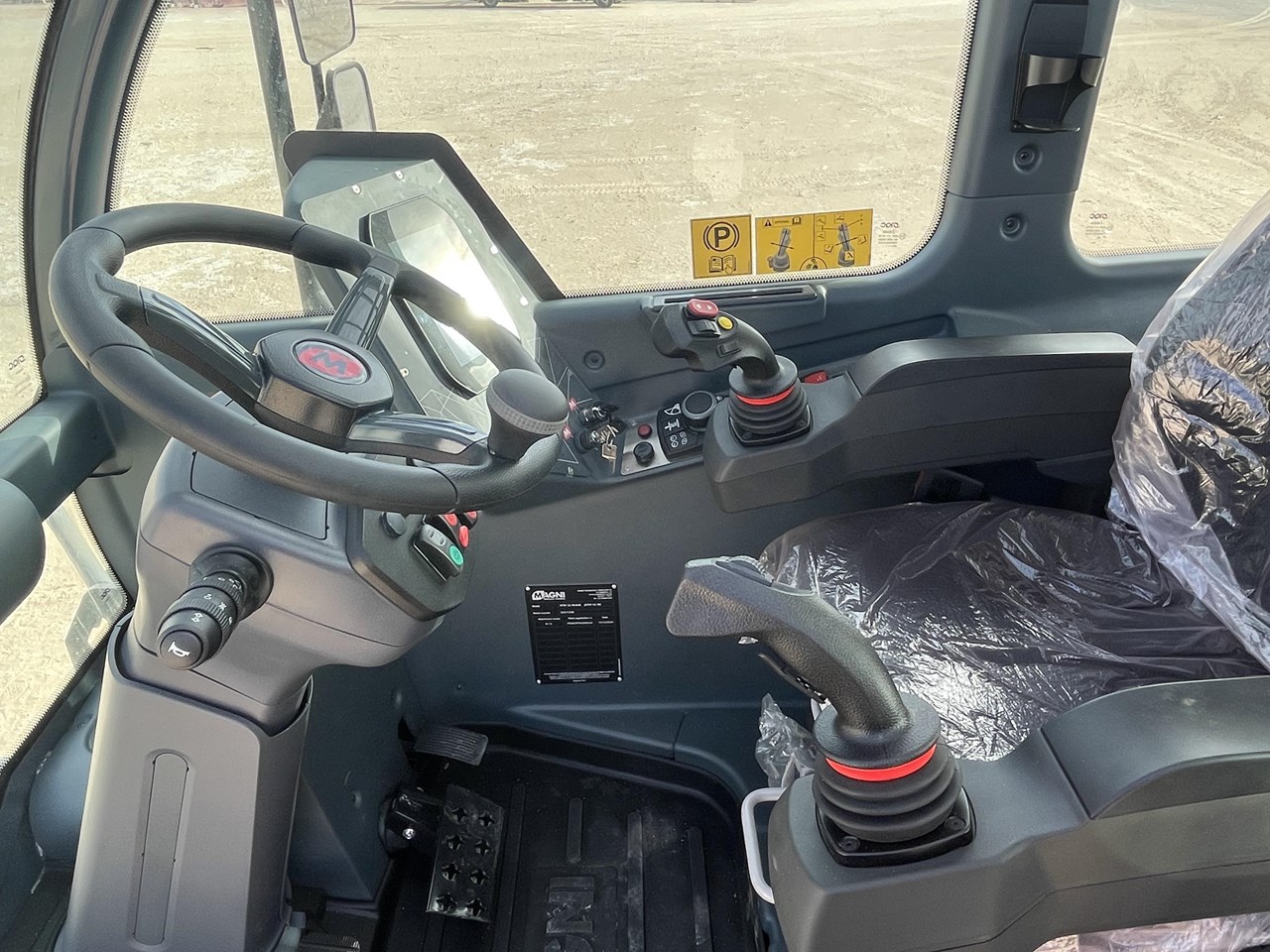

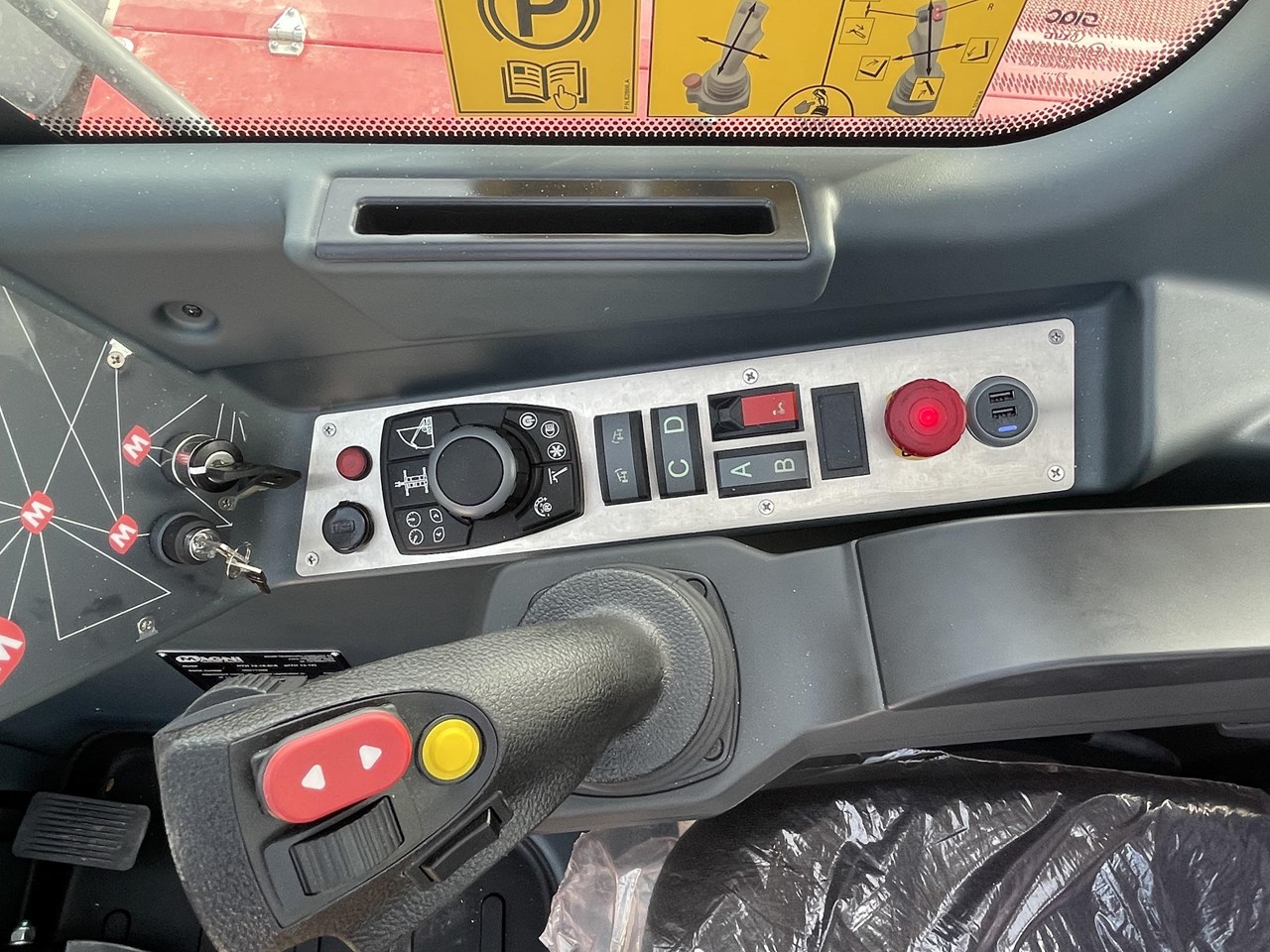

CAB
Comfort seat
Adjustable steering column

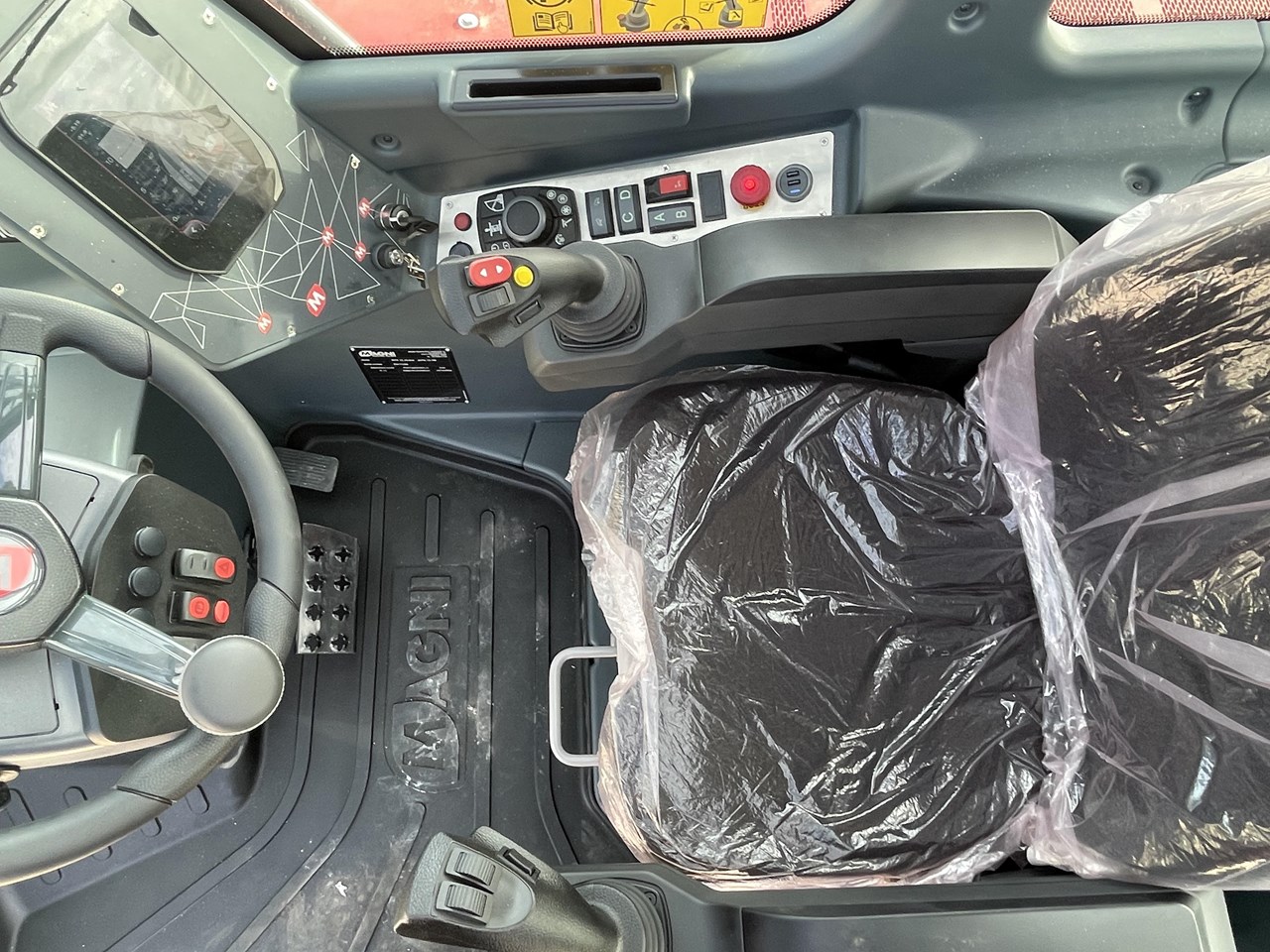

Analogue joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A (5 V) inputs

REAL TIME INFORMATION

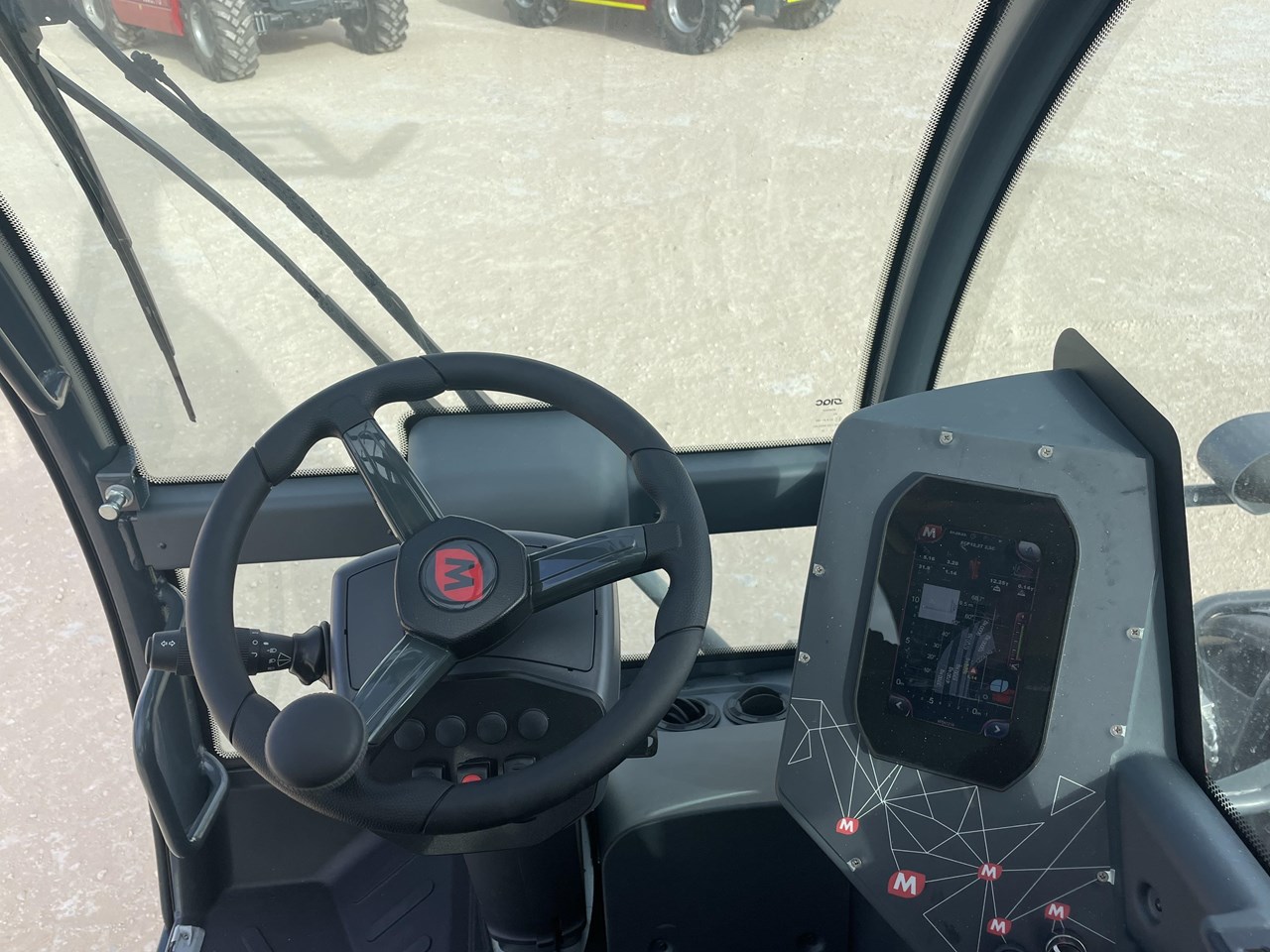

Touchscreen, 7
MCTS Magni Combi Touch System on-board software
Automatic RFID tools recognition system
LMI Load Moment Indicator
Onboard and remote integrated diagnostics

TECHNICAL SPECIFICATIONS
Q-Fit standard
Provision for platform
Two-line CAN BUS system
Automatic front and rear wheel alignment
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V IP67

Specifications:
o Lifting capacity: 12,000 kg
o Capacity at maximum height: 9,000 kg
o Lifting height: 9.50 m
o Reach: 5 m

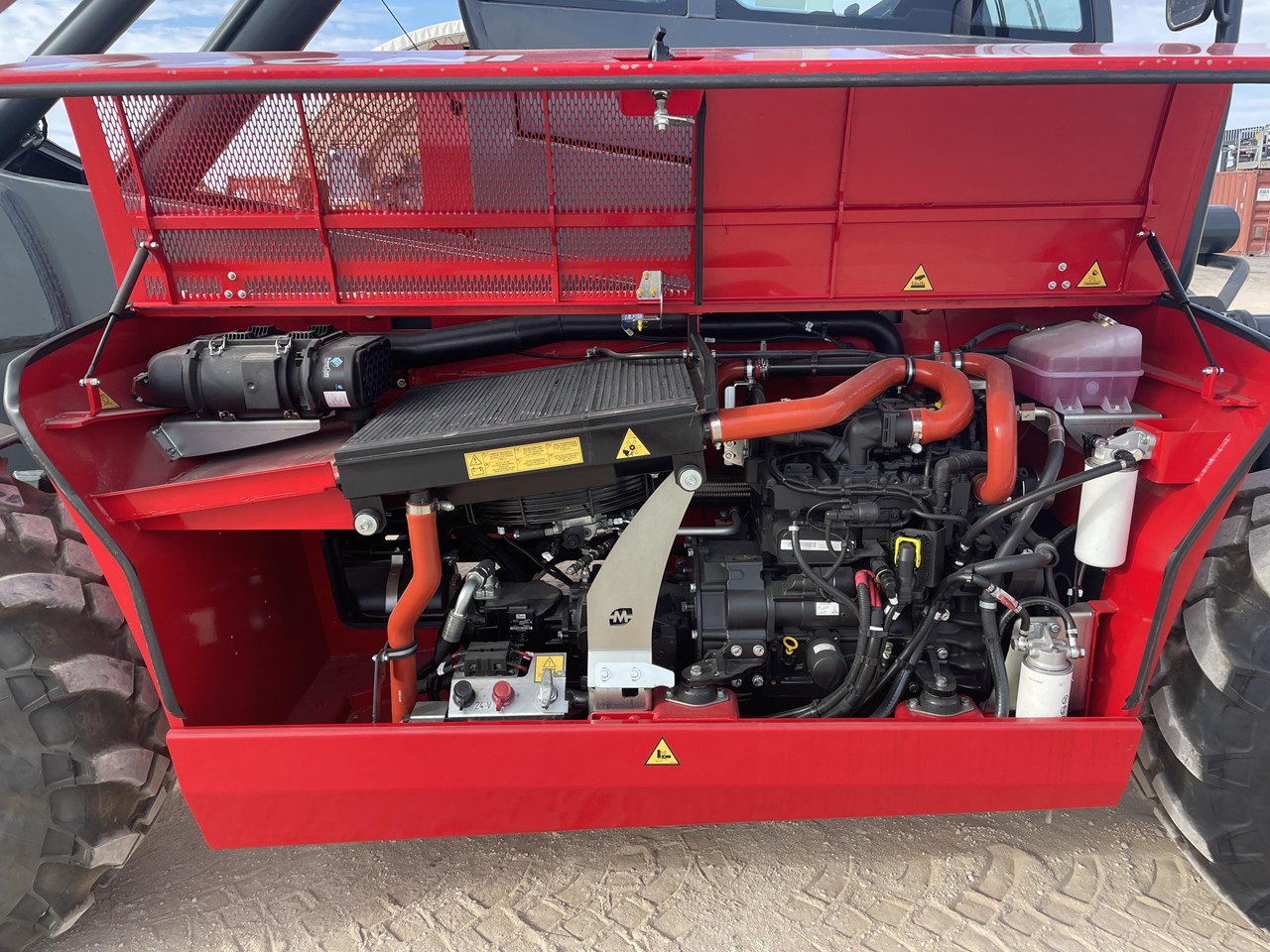

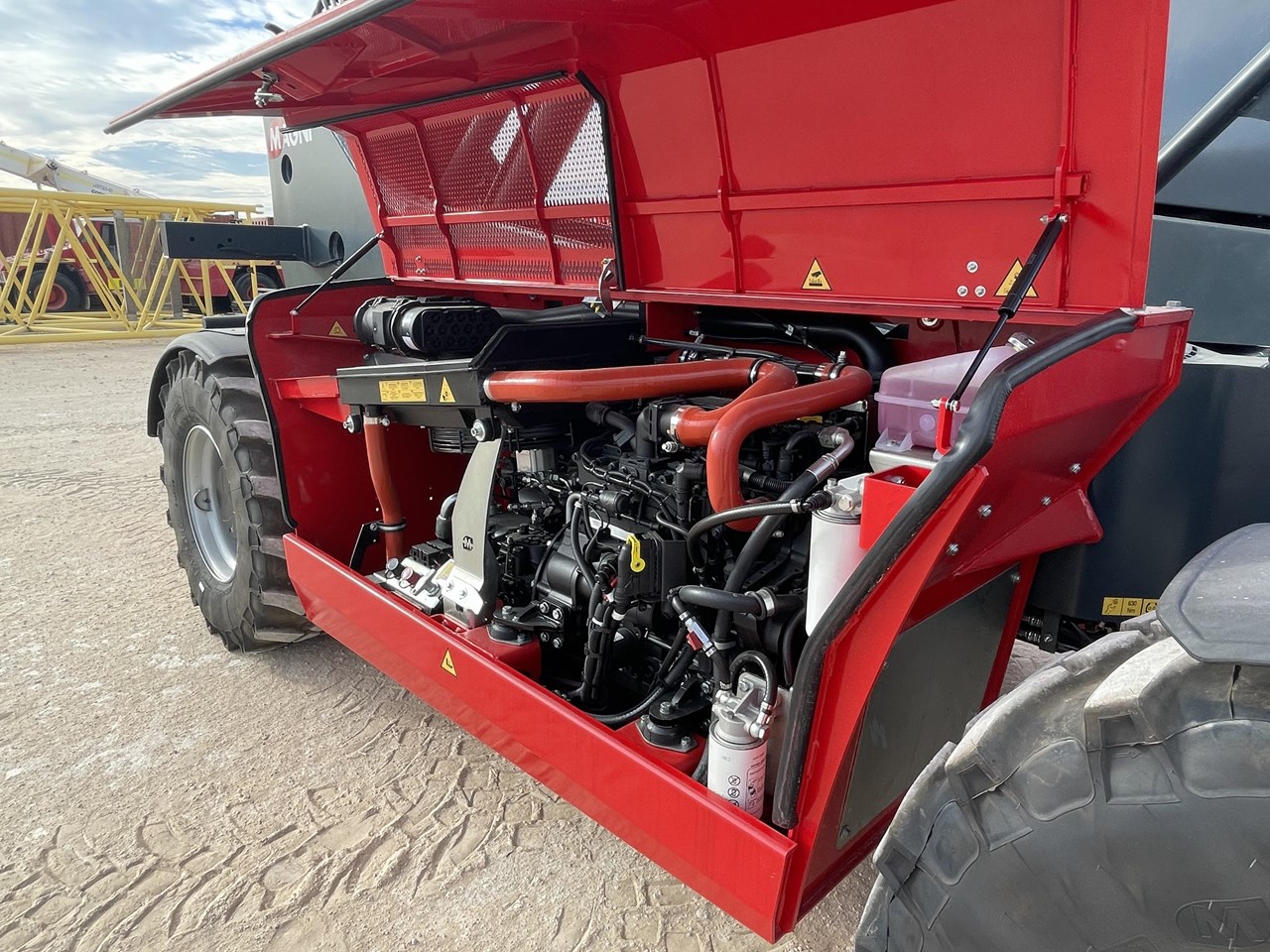

o Engine: Deutz TCD 3,6 L4 -Stage V
o Rated power: 100 kW (136 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 5.43 m
o Width: 2.56 m
o Ground clearance: 350 mm
o Unladen weight: 15,100 kg
o Travel speed: 40 km/h
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversable fan drive: Yes
